Hafele 348.32.801 Concealed Hinge Soft close, screw-on, model F028138562217

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.32.801

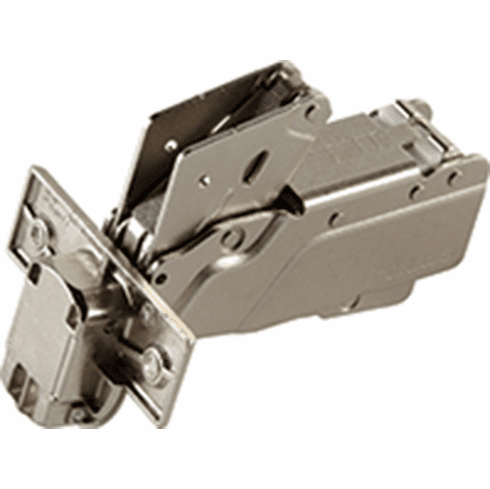

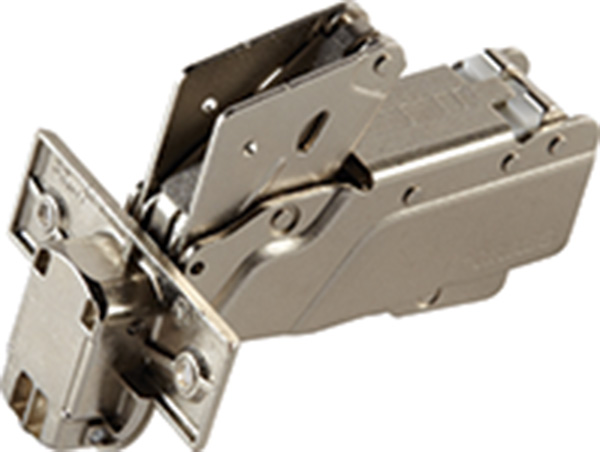

  Product Title: Concealed Hinge, Grass Tiomos 155°, full overlay mounting, for cabinets with internal drawer boxes with railing or pull-out shelves, Soft close, screw-on, model F028138562217

  Category: Concealed Hinge, Grass Tiomos 155°, full overlay mounting, for cabinets with internal drawer boxes with railing or pull-out shelves

  Item Details …

  - optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm

  - Zero offset for use with internal pull outs or extending trays

  - Shallow cup depth of 10 mm

  - surrounding mitre joint connection possible

  - Area of application : for cabinets with internal pull outs or extending trays

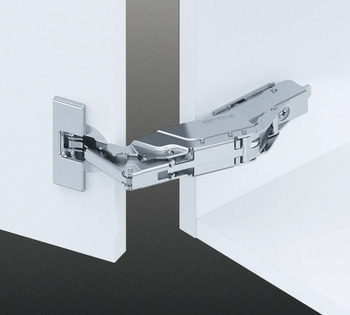

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

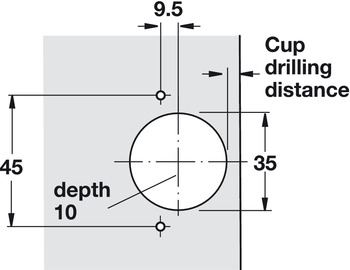

  - Door processing for assembly : with cup drilling

  - Material : Cup: Zinc alloy, Hinge arm: Steel

  - Color/finish : nickel plated

  - Opening angle : 155°

  - Cup drilling depth : 10.00 mm

  - Drilling depth : Shallow cup: 3/8"

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : Door on cabinet without tools with clip system

  - Installation reference ___


  Additional Information …

  The dimensions in the drawings are calculated with a mounting plate, distance 2 mm.No minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.53



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.52-9.52.pdf

  Hafele 348.32.801, 348-32-801, 34832801, 348.32


  Specifications/Hafele Catalog - Page# FC9.51: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Cover Caps, for Tiomos Concealed Hinge
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Hinge Clip Protector
