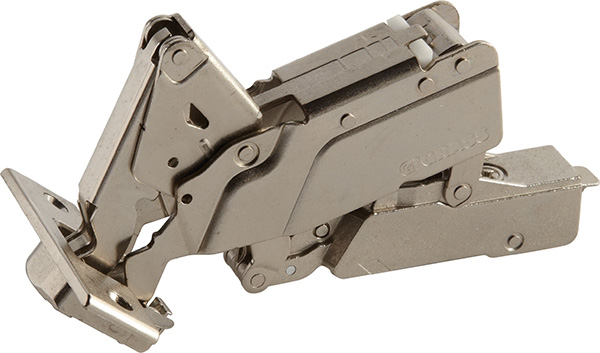

Hafele 348.32.601 Concealed Hinge Self close, screw-on, model F045138500217

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.32.601

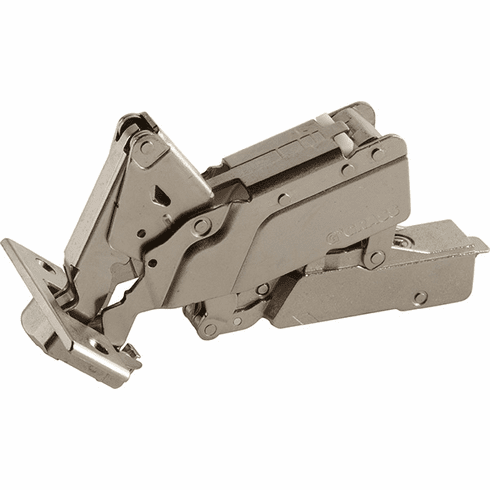

  Product Title: Concealed Hinge, Grass Tiomos 155°, full overlay mounting, for cabinets with internal drawer boxes with railing or pull-out shelves, Self close, screw-on, model F045138500217

  Category: Concealed Hinge, Grass Tiomos 155°, full overlay mounting, for cabinets with internal drawer boxes with railing or pull-out shelves

  Item Details …

  - optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm

  - Zero offset for use with internal pull outs or extending trays

  - Shallow cup depth of 10 mm

  - surrounding mitre joint connection possible

  - Area of application : for cabinets with internal pull outs or extending trays

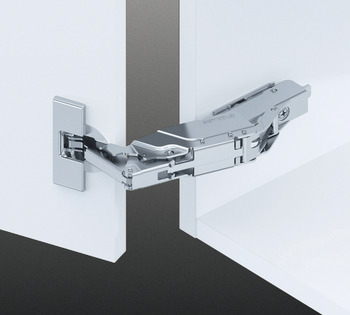

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Zinc alloy, Hinge arm: Steel

  - Color/finish : nickel plated

  - Opening angle : 155°

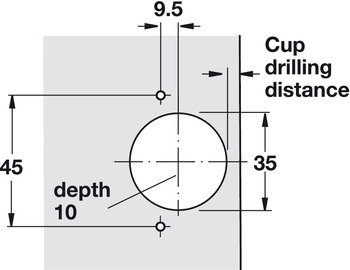

  - Cup drilling depth : 10.00 mm

  - Drilling depth : Shallow cup: 3/8"

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : Door on cabinet without tools with clip system

  - Installation reference ___


  Additional Information …

  The dimensions in the drawings are calculated with a mounting plate, distance 2 mm.No minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.
