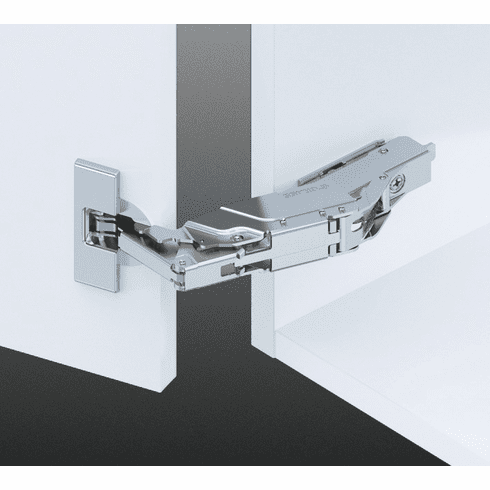

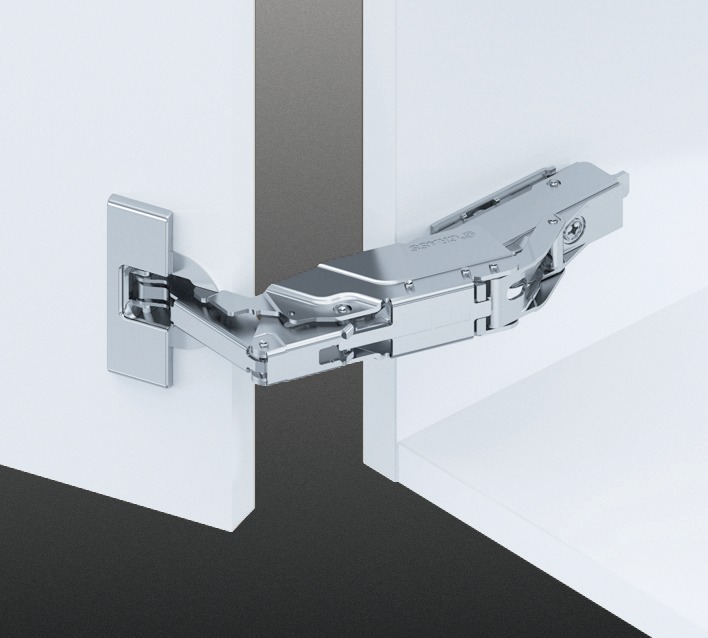

Hafele 348.32.532 Concealed Hinge, Grass TIOMOS, 165 degree Opening Angle, Half Overlay Self close, Impresso, model F034139408217

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.32.532

  Product Title: Concealed Hinge, Grass TIOMOS, 155° Opening Angle, Half Overlay, for cabinets with internal drawer boxes with railing or pull-out shelves, Self close, Impresso, model F034139408217

  Category: Concealed Hinge, Grass TIOMOS, 155° Opening Angle, Half Overlay, for cabinets with internal drawer boxes with railing or pull-out shelves

  Item Details …

  - optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm

  - Zero offset for use with internal pull outs or extending trays

  - Shallow cup depth of 10 mm

  - surrounding mitre joint connection possible

  - Area of application : for cabinets with internal pull outs or extending trays

  - Concealed hinge version : Half overlay mounting/twin mounting

  - Crank type : High Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 155°

  - Cup drilling depth : 10.00 mm

  - Drilling depth : Shallow cup: 3/8"

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : Door on cabinet without tools with clip system

  - Installation reference : Minimum gap FNo minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.


  Additional Information …

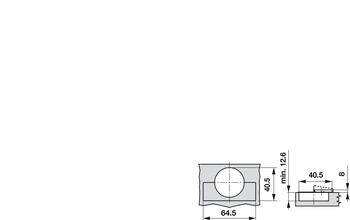

  The dimensions specified in the drawings are calculated with a mounting plate distance 2 mm.No minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.53



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.52-9.52.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Cover Caps, for Tiomos Concealed Hinge
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Hinge Clip Protector
