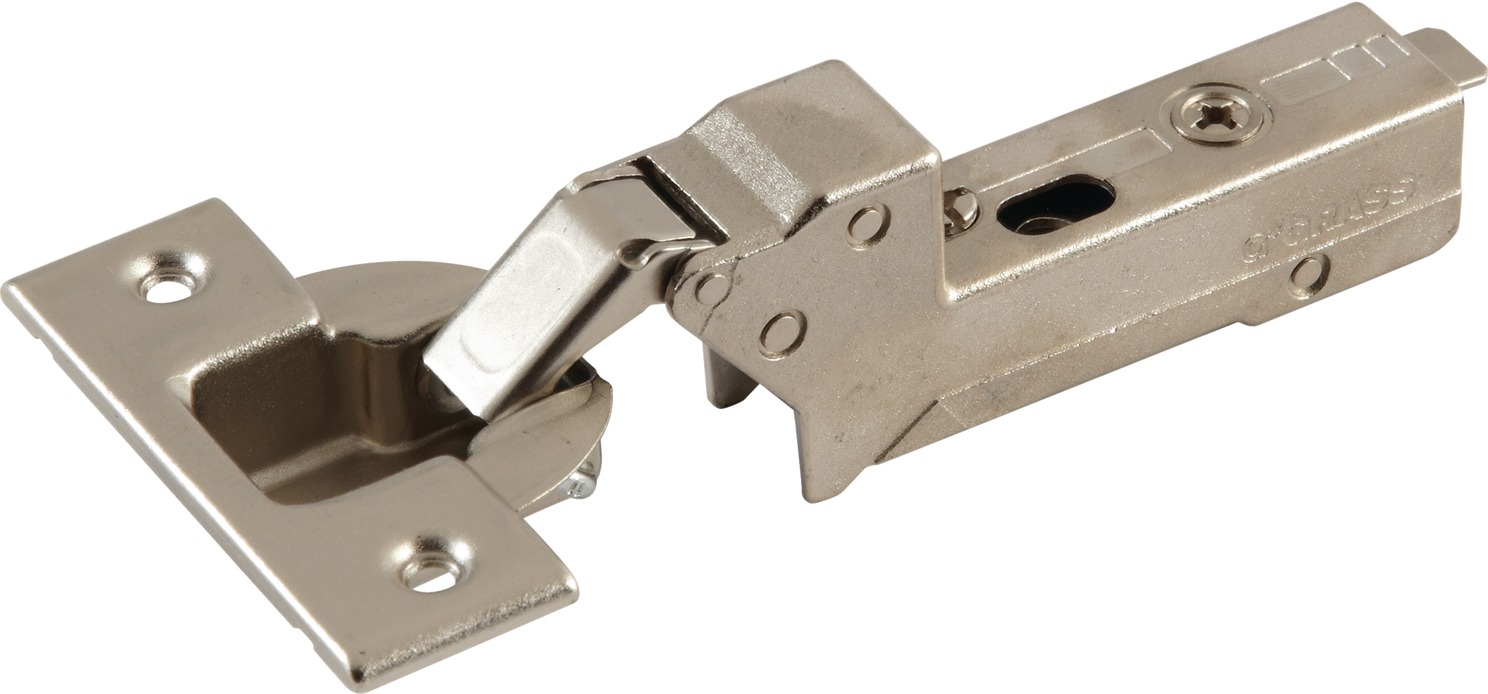

Hafele 348.31.803 Concealed Hinge, Grass TIOMOS, 110 degree Opening Angle, Inset Mounting Soft Close, screw-on, model F028138522228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.31.803

  Product Title: Concealed Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting, for standard applications, Soft Close, screw-on, model F028138522228

  Category: Concealed Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting, for standard applications

  Item Details …

  - optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm

  - with automatic opening mechanism for convenient opening of front panels without handles

  - Optimum gap dimensions with door thickness of up to 24 mm

  - Area of application : for standard applications

  - Concealed hinge version : inset

  - Crank type : High Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 110°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : Door on cabinet without tools with clip system

  - Installation reference : Set back mounting plate screw-on position by door thickness +1.5 mm.


  Additional Information …

  The dimensions in the drawings are calculated with a mounting plate, distance 2 mm.Please order Grass Tipmatic separately for hinges with opening mechanism.



  Set back mounting plate screw-on position by door thickness +1.5 mm.
