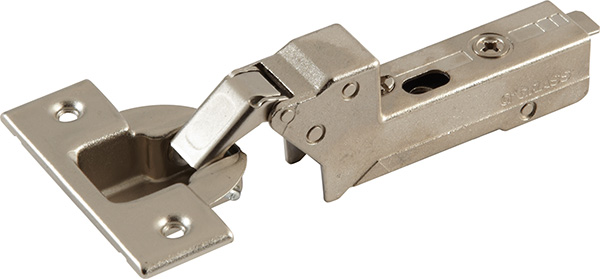

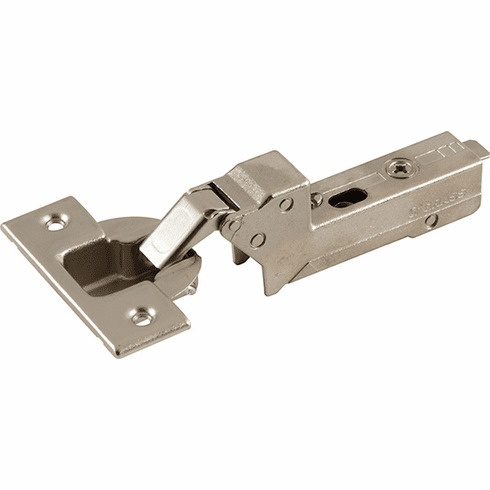

Hafele 348.31.603 Concealed Hinge, Grass TIOMOS, 110 degree Opening Angle, Inset Mounting Self Close, screw-on, model F045138460228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.31.603

  Product Title: Concealed Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting, for standard applications, Self Close, screw-on, model F045138460228

  Category: Concealed Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting, for standard applications

  Item Details …

  - optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm

  - with automatic opening mechanism for convenient opening of front panels without handles

  - Optimum gap dimensions with door thickness of up to 24 mm

  - Area of application : for standard applications

  - Concealed hinge version : inset

  - Crank type : High Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 110°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : Door on cabinet without tools with clip system

  - Installation reference : Set back mounting plate screw-on position by door thickness +1.5 mm.


  Additional Information …

  The dimensions in the drawings are calculated with a mounting plate, distance 2 mm.Please order Grass Tipmatic separately for hinges with opening mechanism.



  Set back mounting plate screw-on position by door thickness +1.5 mm.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.51



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.50-9.50.pdf

  Hafele 348.31.603, 348-31-603, 34831603, 348.31


  Specifications/Hafele Catalog - Page# FC9.49: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Cover Caps, for Tiomos Concealed Hinge
  • Hinge Clip Protector
