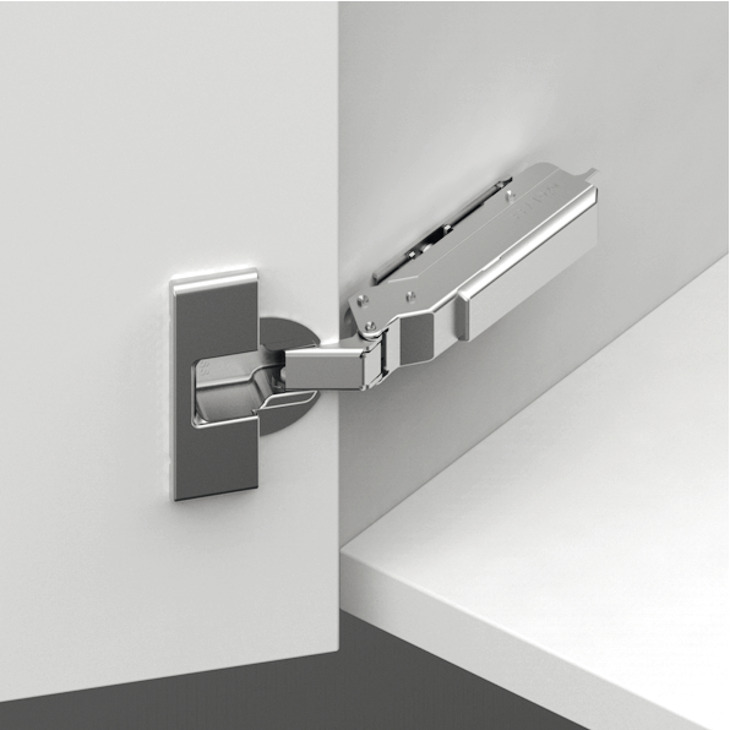

Hafele 348.31.331 Concealed Hinge, 110 degree Opening Angle, Full Overlay For standard applications, Cup fixing: without tools, without automatic closing spring, without soft closing, model F035139443228
Product Information
Description
Hafele 348.31.331 Concealed Hinge, 110° Opening Angle, Full Overlay
For standard applications, Cup fixing: without tools, without automatic closing spring, without soft closing, model F035139443228Material : Full overlay mounting: Cup and hinge arm: Steel
half overlay mounting and inset mounting: Cup: Steel, hinge arm: Zinc alloyFinish : Nickel-plated Installation : Door to cabinet without tools (clip system) Adjustment : Side adjustment from -2 to +2 mm
Depth adjustment from -2 to +3 mm
Height adjustment max. ±2.5 mm depending on the mounting plate
Optional items:
Cover capCatalog Pages
