Hafele 348.23.801 Concealed Hinge, Grass, Tiomos M0 125 degree, for Thin Doors with soft closing mechanism

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.23.801

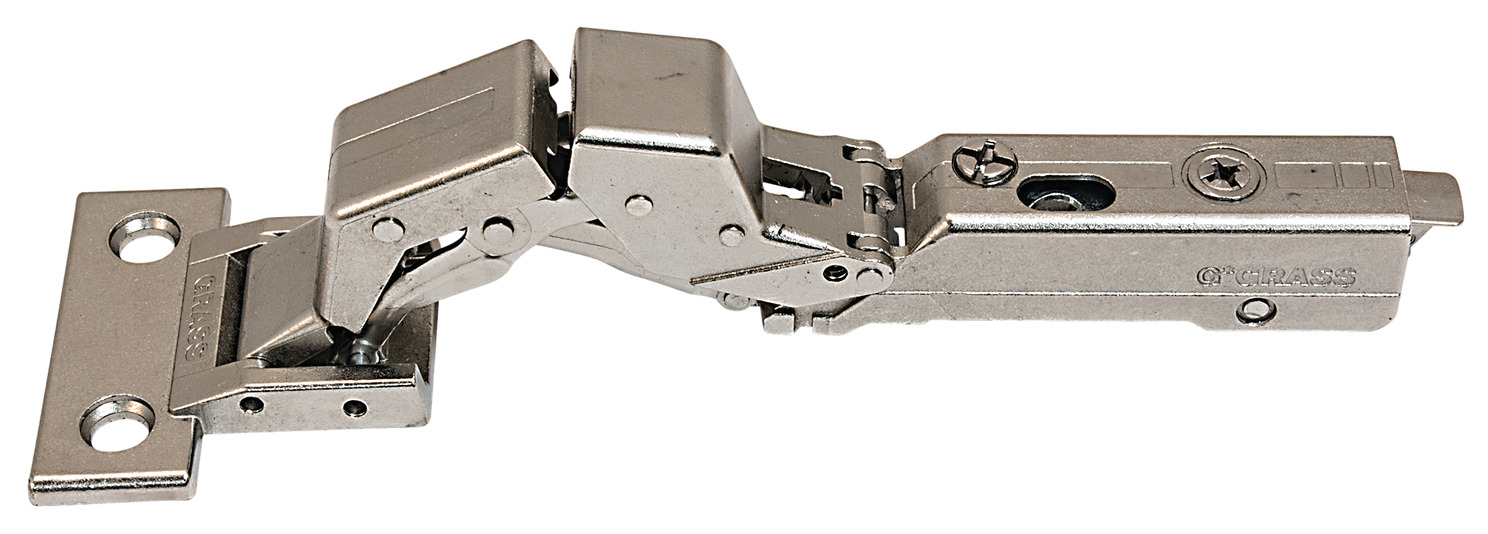

  Product Title: Concealed Hinge, Grass, Tiomos M0 125°, for Thin Doors, For laminate (HPL) doors, with soft closing mechanism

  Category: Concealed Hinge, Grass, Tiomos M0 125°, for Thin Doors, For laminate (HPL) doors, with soft closing mechanism

  Item Details …

  - Ideal for thin doors made from HPL, MDF or mineral material

  - Without cup drilling

  - No offset with overlay up to 14 mm

  - With integrated, adjustable soft closing mechanism with 3 settings or with automatic opening mechanism

  - Area of application : For thin door materials with thickness from 6 to 10 mm

  - Version : With soft closing mechanism

  - Crank type : High Cranked

  - For door material : laminate

  - Door processing for assembly : without

  - Material : Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 125°

  - Cup fixing : for screw fixing

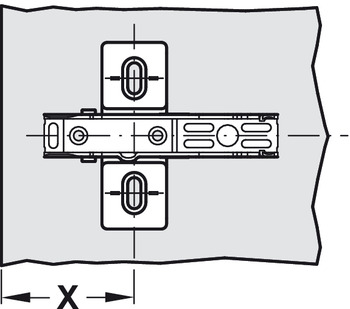

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : For screw fixing to door


  Additional Information …

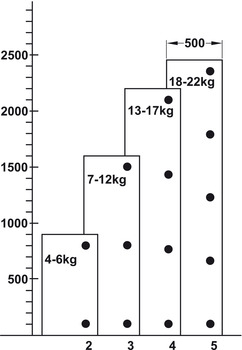

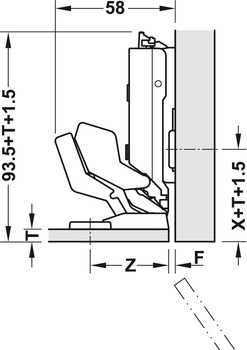

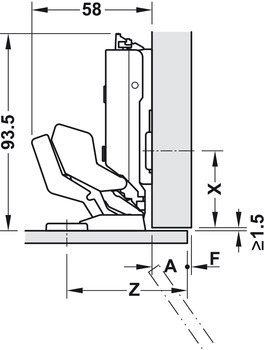

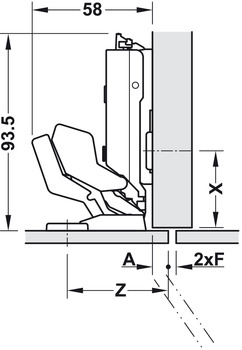

  Minimum gap F = 2 mm. Applies to hinge with factory settings, door thickness from 6 to 10 mm with chamfered edges (R = 1 mm) and screw-on dim. Z from 38 to 66 mm.
