Hafele 344.06.320 Single Pivot Institutional Hinge Arm, Aximat 300, Grade 1, with Expanding Dowels Black, full overlay, 270 degree opening angle

Product Information

• Description

  Manufacturer: Hafele
  Item: 344.06.320

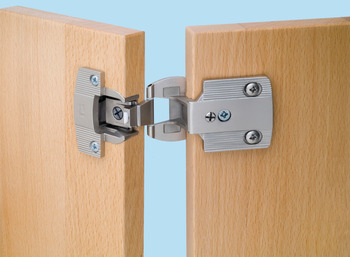

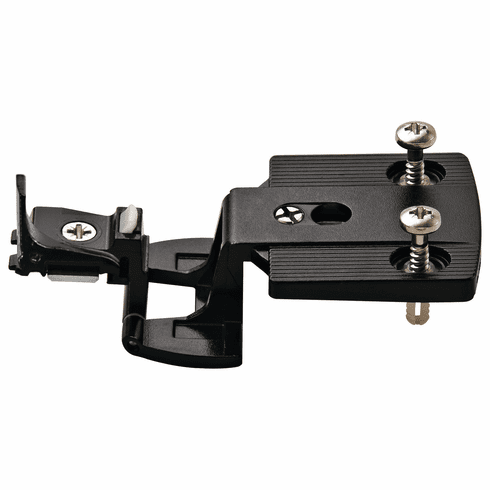

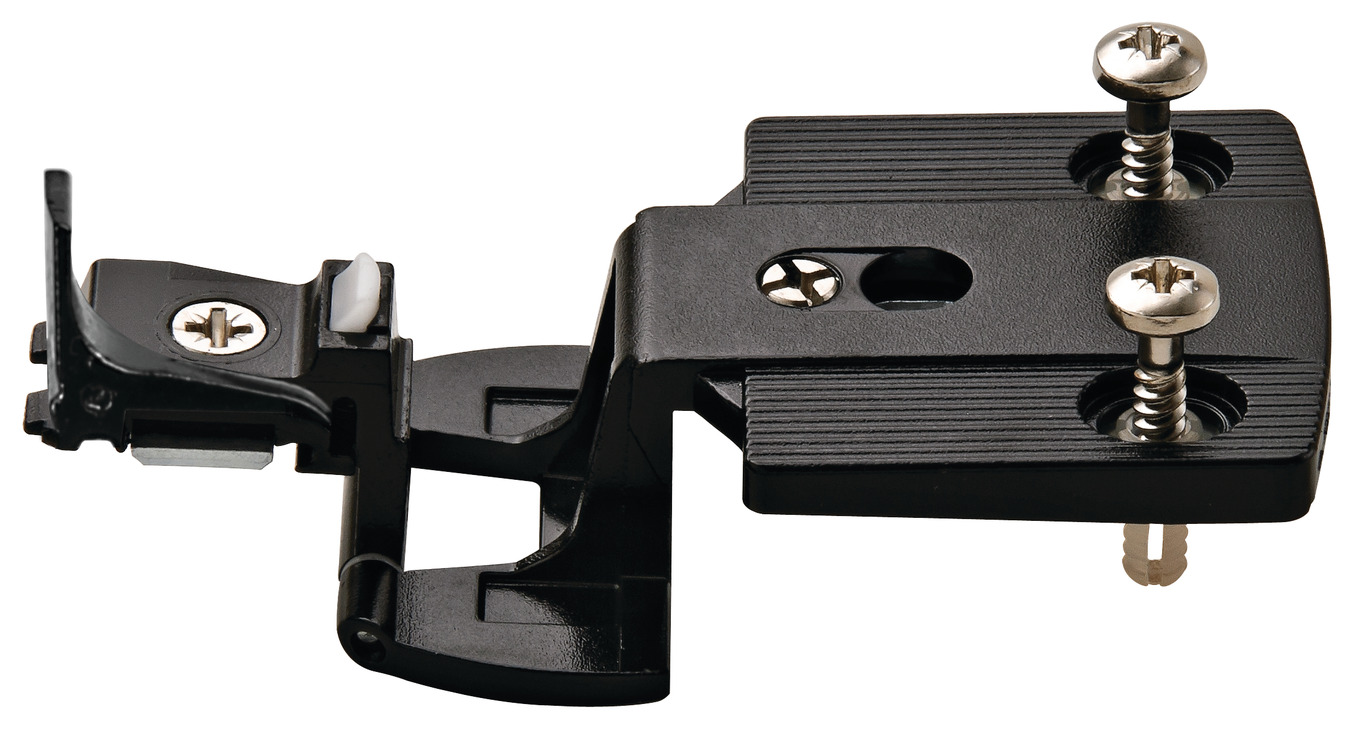

  Product Title: Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, with Expanding Dowels, Aximat® 300, Black, full overlay, 270° opening angle

  Category: Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, with Expanding Dowels, Aximat® 300

  Item Details …

  - Hinge arm component available with pre-installed expanding dowels for 5 mm holes, or for screw attachment

  - Hinge cup component available in screw-mount or dowel-mount

  - Arm and cup clip-together, no tools required

  - Sleek sophisticated design, only 5 mm (3/16”) of knuckle is visible

  - Integrated catch keeps doors closed, no additional magnetic catches required

  - #6 wood screws for hinge attachment are not included

  - Tested in accordance with ANSI/BHMA Grade 1 standards

  - Area of application : For single cabinets and storage walls

  - Door processing for assembly : without

  - Material : Zinc alloy

  - Side panel thickness : ?19 mm

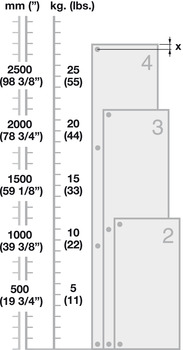

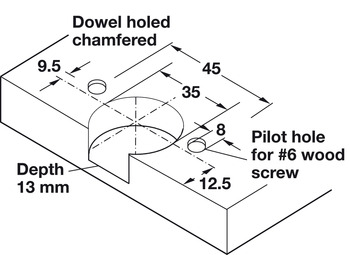

  - Cup drilling depth : 13.00 mm

  - Cup drilling Ř : 35.00 mm

  - Installation : With pre-mounted expanding dowels for 5mm holes

  - Order reference

  - #6 wood screws for hinge attachment are not included


  Additional Information …

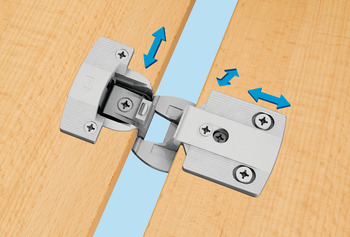

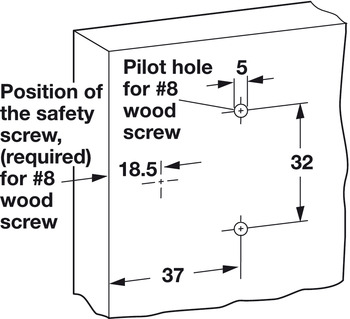

  Installation of safety screw in arm is required.
