Hafele 344.05.800 Single Pivot Institutional Hinge Cup, Aximat 200, Grade 1, Screw Mount

Product Information

• Description

  Manufacturer: Hafele
  Item: 344.05.800

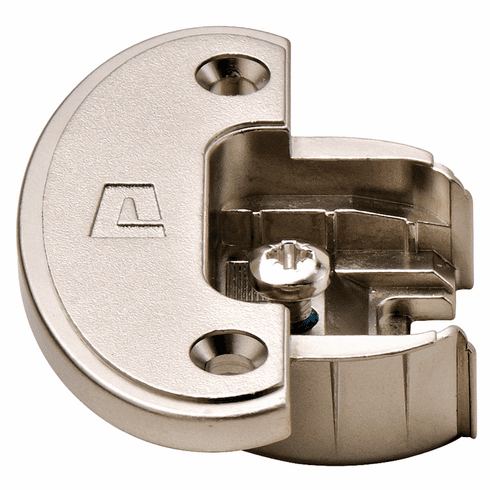

  Product Title: Single Pivot Institutional Hinge Cup, Aximat® 200, Grade 1, Screw Mount, Matt nickel

  Category: Single Pivot Institutional Hinge Cup, Aximat® 200, Grade 1, Screw Mount, Matt nickel

  Item Details …

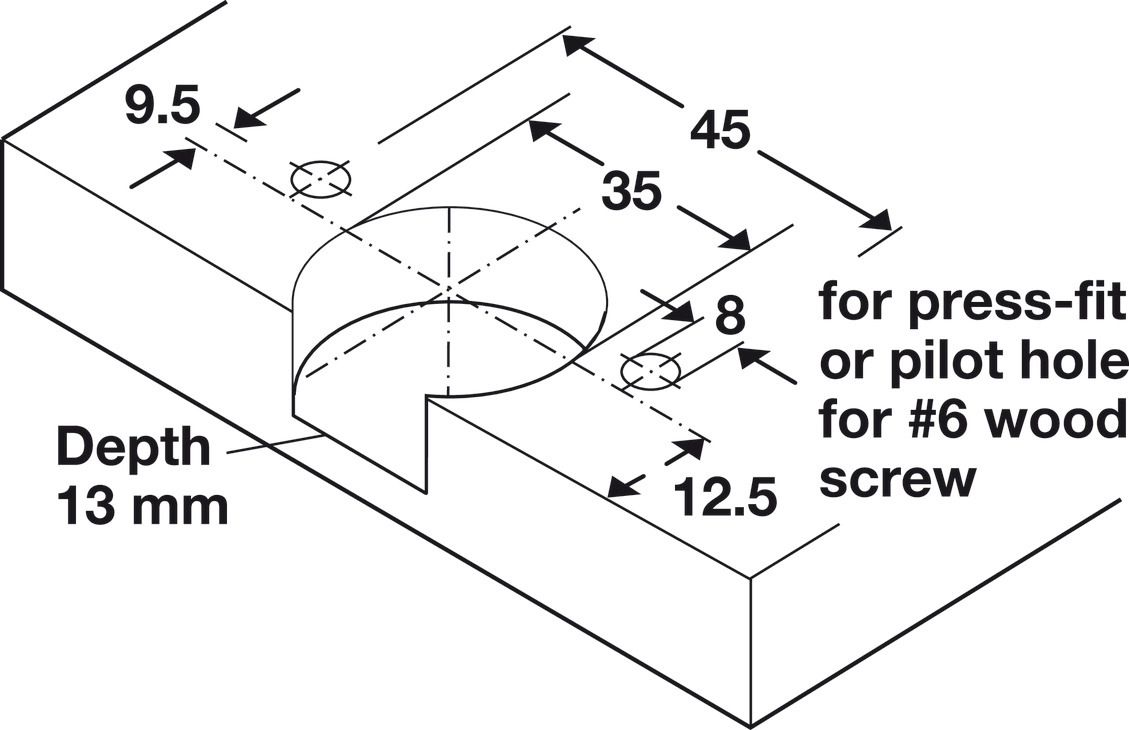

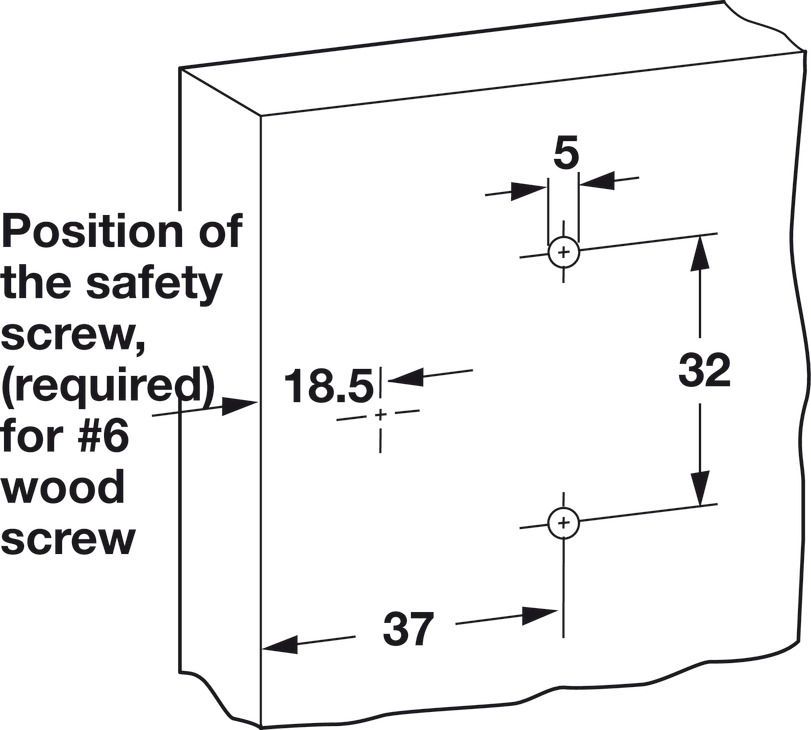

  - Attachment screws are not included. A #6 flat head wood screw is used for safety screw and hinge cup attachment.

  - Integrated catch keeps doors closed, no additional magnetic catches required

  - Tested in accordance with ANSI/BHMA Grade 1 standards

  - Color/finish : nickel plated

  - For door thickness min. : 13/16"

  - Side panel thickness min. : 3/4"

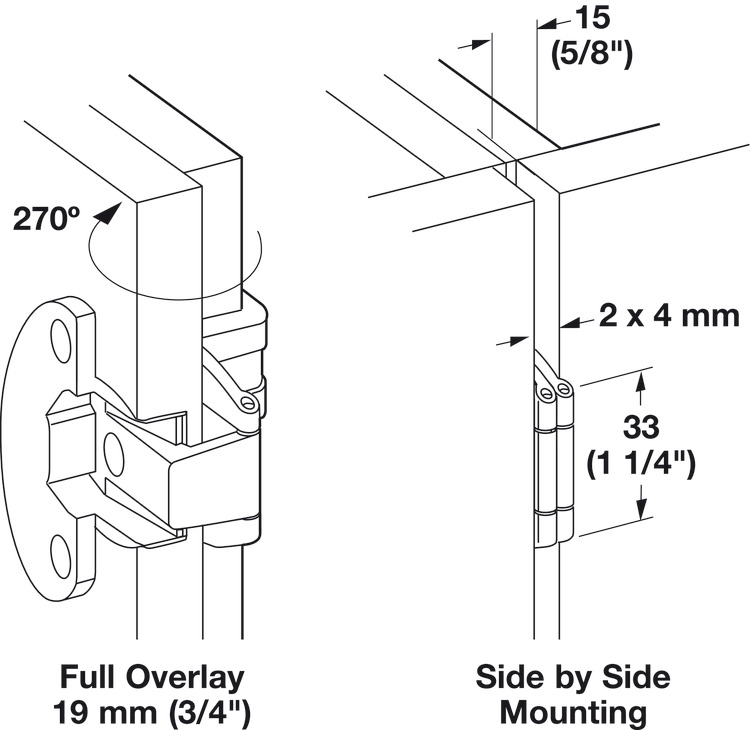

  - Area of application : For full overlay or inset doorsFor single cabinets and storage walls

  - Material : Zinc alloy

  - For door thickness : 16?–?21 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Required Products & Optional Accessories

  Optional Accessories:



  • Wood Screw, Flat Head Countersunk, Phillips Drive
