Hafele 343.91.600 Folding Door Institutional Hinge, Aximat, Opening Angle 180 degree Nickel finish

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.91.600

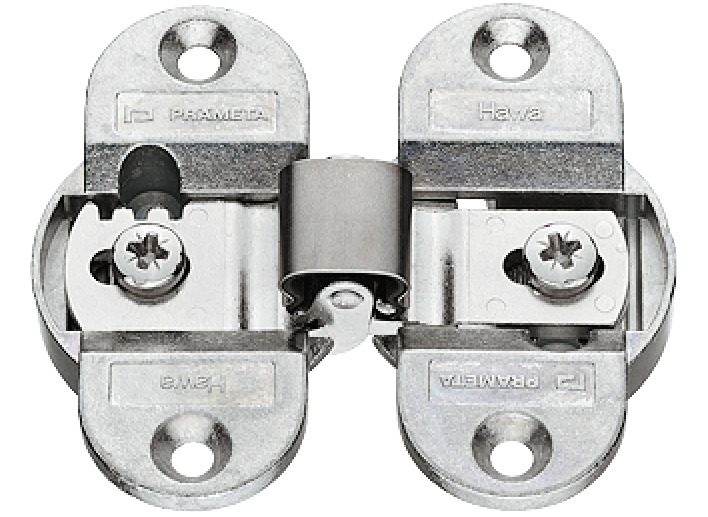

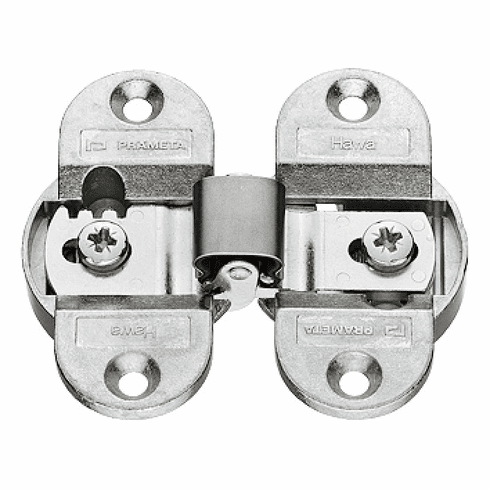

  Product Title: Folding Door Institutional Hinge, Aximat®, Opening Angle 180°, for Hawa Multifold, Nickel finish

  Category: Folding Door Institutional Hinge, Aximat®, Opening Angle 180°, for Hawa Multifold, Nickel finish

  Item Details …

  - Same drilling pattern for both leaves

  - Constant spring tension is maintained during all adjustments

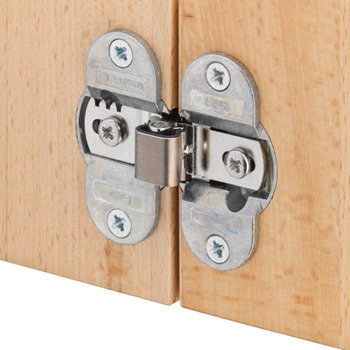

  - Area of application : for folding doors

  - Version : with spring: Extending and folding spring force stabilisedwith adjustable pivot offset

  - For door material : wood

  - Door processing for assembly : without

  - Material : Zinc alloy

  - Color/finish : Cup: nickel plated, Hinge arm: Zinc plated

  - Opening angle : 180°

  - For door thickness : ?13 mm

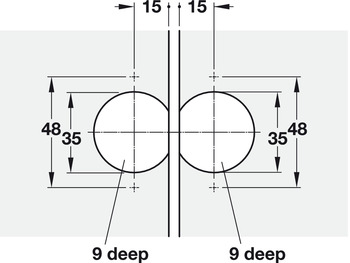

  - Cup drilling depth : 9.00 mm

  - Cup drilling Ř : 35.00 mm

  - Cup fixing : for screw fixing

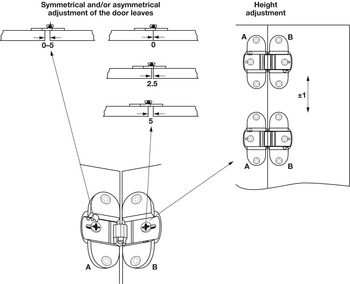

  - Adjustment facility : Side adjustment: 5 mm, Height adjustment: -1?–?1 mm, Gap adjustable by 0-10 mm (factory setting 3 mm, central pivot point)

  - Length (inch) : 2' 1 19/32"

  - Installation : For screw fixing

  - Installation reference : Plan number and position of folding door hinges in accordance with the number and position of the door hingesProvide spacer with gap > 0 mm
