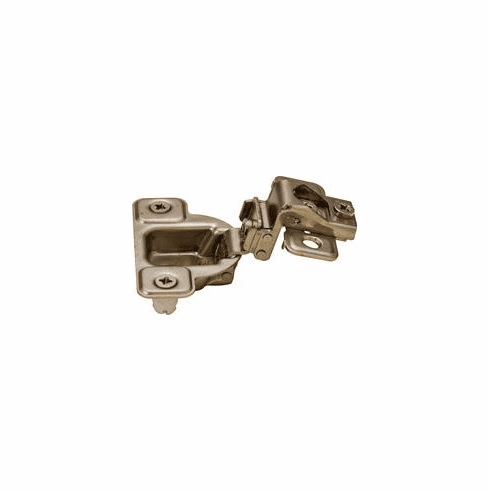

Hafele 343.62.516 Concealed Hinge, Salice Face Frame 3 Cam, 106 degree Opening Angle, Self Close 1 1/4" Overlay, model CSR3A99NR Press-fit

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.62.516

  Product Title: Concealed Hinge, Salice Face Frame 3 Cam, 106° Opening Angle, Self Close, 1 1/4" Overlay, model CSR3A99NR Press-fit

  Category: Concealed Hinge, Salice Face Frame 3 Cam, 106° Opening Angle, Self Close,

  Item Details …

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 106°

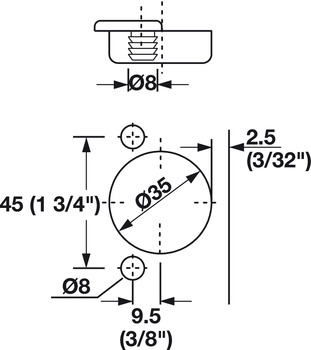

  - Cup drilling depth : 11.00 mm

  - Drilling depth : Hinge cup: 7/16"

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5


  Additional Information …

  Additional overlays available.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.75



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.71-9.73.pdf

  Hafele 343.62.516, 343-62-516, 34362516, 343.62
