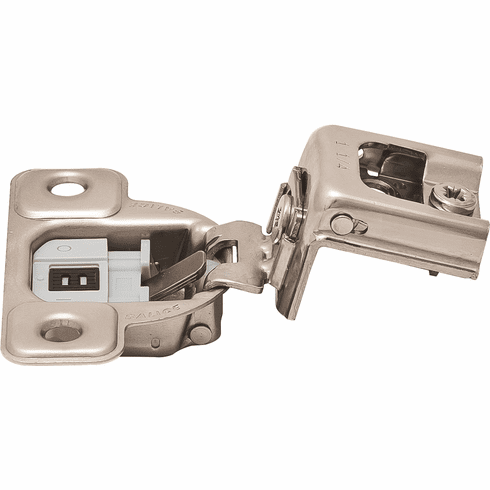

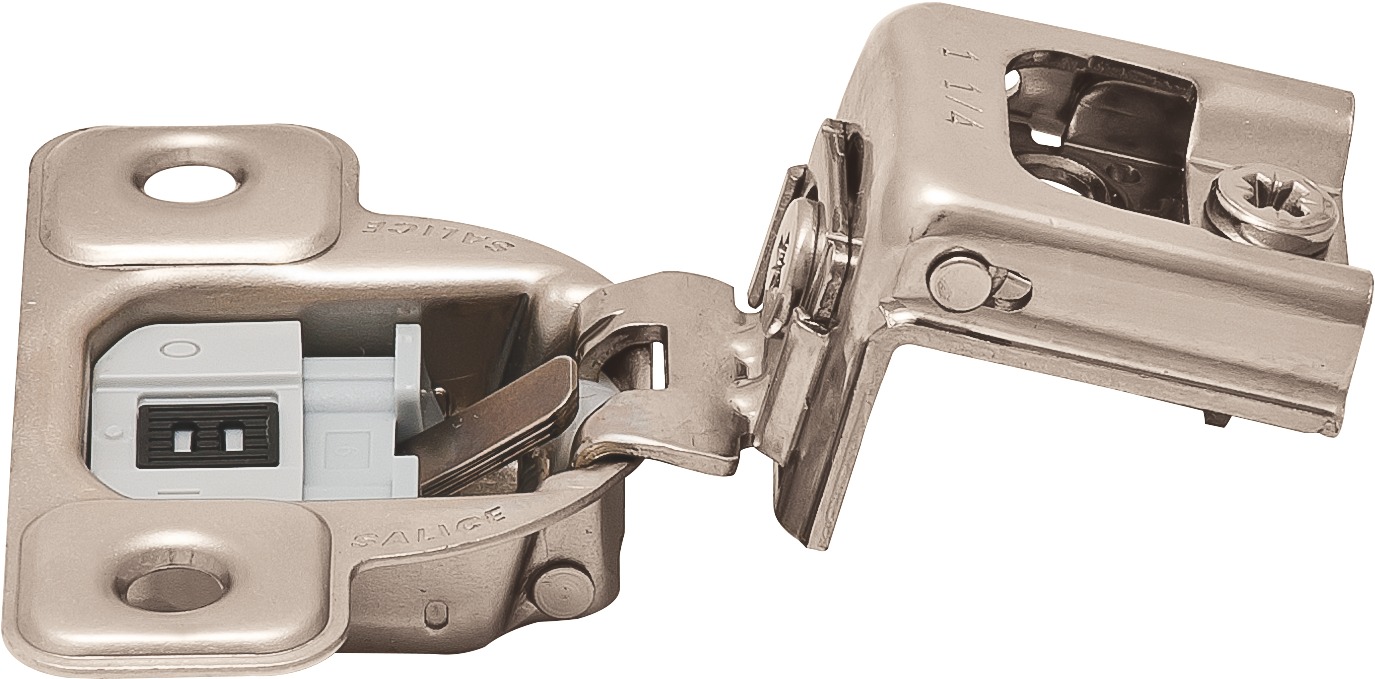

Hafele 343.61.522 Concealed Hinge, Salice Excentra 2-Cam, 106 degree Opening Angle, Soft Close, 1 1/4" Overlay Nickel-plated, screw-on, model CUP3AD9

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.61.522

  Product Title: Concealed Hinge, Salice Excentra 2-Cam, 106° Opening Angle, Soft Close, 1 1/4" Overlay, Nickel-plated, screw-on, model CUP3AD9

  Category: Concealed Hinge, Salice Excentra 2-Cam, 106° Opening Angle, Soft Close, 1 1/4" Overlay,

  Item Details …

  - Technology that delivers soft closing door that respond with a smooth steady motion

  - Perfect door alignment is simple to achieve with 2 automatic cam adjustments

  - Features an 11 mm cup depth to accommodate narrow door profiles

  - Increased range of side adjustment insures small, consistent gaps between doors

  - The easy to use activation switch allows for closing speed options

  - Tab 2.5 mm for 1/2”, 2.5 - 4.0 mm for 1 1/4”

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 106°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

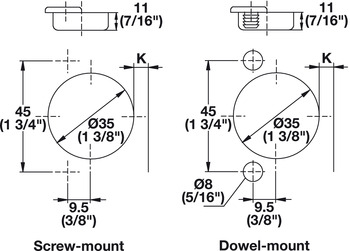

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet
