Hafele 343.61.500 Concealed Hinge, Salice Face Frame 2-Cam, 106 degree Opening Angle, Self Close 1/2" Overlay, model CSP3799, screw-on

Product Information

• Description

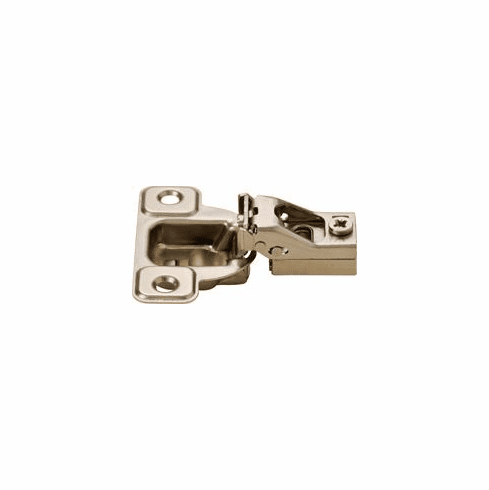

  Hafele 343.61.500 Concealed Hinge, Salice Face Frame 2-Cam, 106� Opening Angle, Self Close
  1/2" Overlay, model CSP3799, screw-on

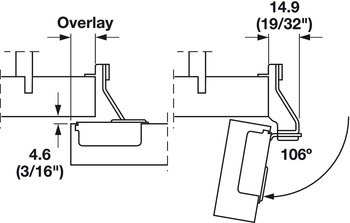

  Opening angle : 106 �

  Adjustment : 2 eccentric cam adjustments

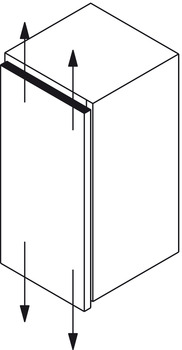

  Vertical adjustment � 2.5 mm (1/8��)

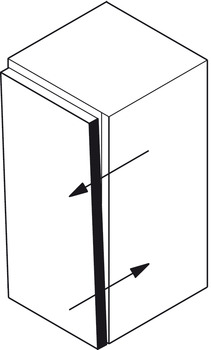

  In and out cam adjustment: -0.5 mm (1/64��) +2.5 mm (1/8��)

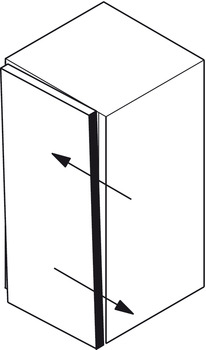

  Horizontal cam adjustment: �1.5 mm (1/16��)

  Installation : Attaches directly to Face Frame

  Features : Tab - Fixed at 2.5 mm

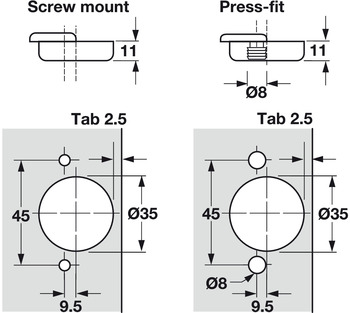

  Drilling Pattern : 45/9.5

  Material : Steel

  Finish : Nickel-plated





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.71-9.73.pdf

  Hafele 343.61.500, 343-61-500, 34361500, 343.61
