Hafele 343.60.502 Concealed Hinge, Salice Face Frame 2-Cam, 106 degree Opening Angle, Self Close 3/8" Overlay, model CSR3Y99, screw-on

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.60.502

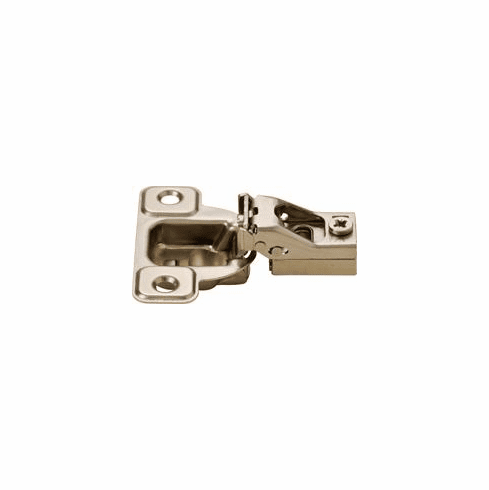

  Product Title: Concealed Hinge, Salice Face Frame 2-Cam, 106° Opening Angle, Self Close, 3/8" Overlay, model CSR3Y99, screw-on

  Category: Concealed Hinge, Salice Face Frame 2-Cam, 106° Opening Angle, Self Close,

  Item Details …

  - Door processing for assembly : with cup drilling

  - Material : Steel

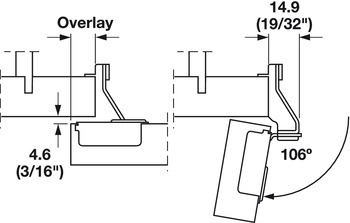

  - Opening angle : 106°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

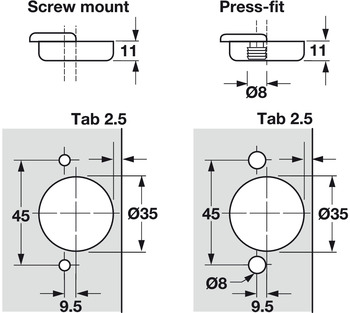

  - Drilling pattern : 45/9.5

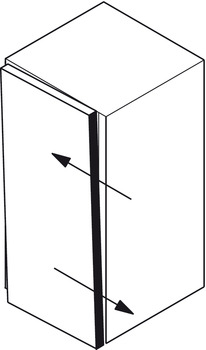

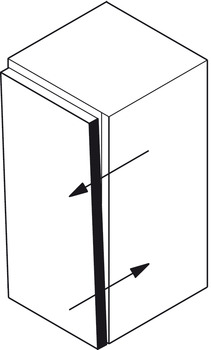

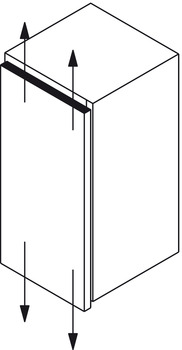

  - Adjustment facility : Side adjustment ±1.5 mm, Height adjustment ±2.5 mm
