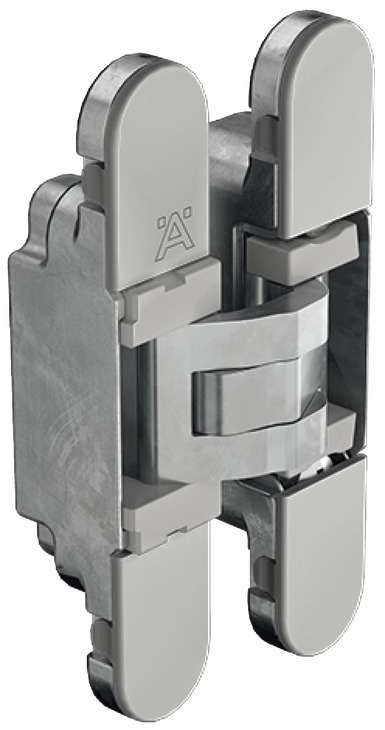

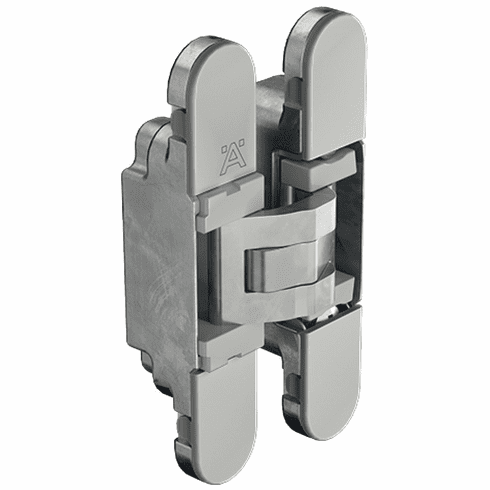

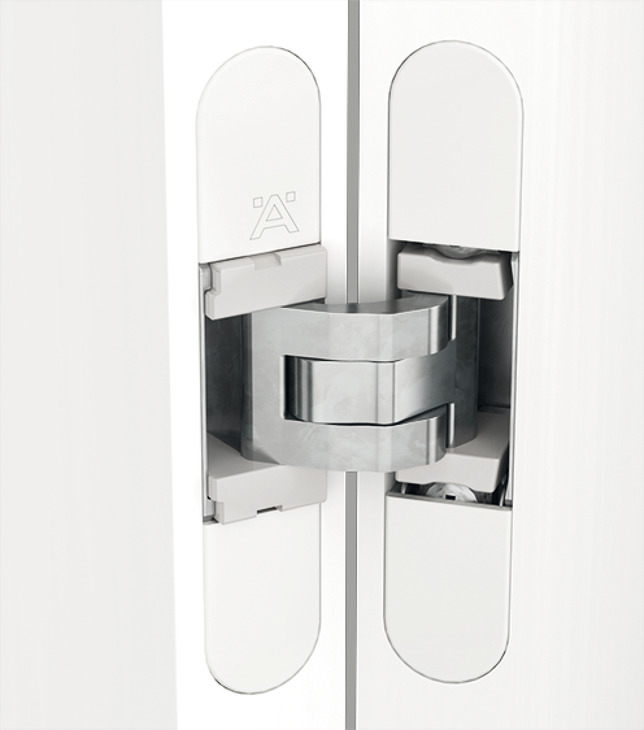

Hafele 341.24.435 Mortise Hinge, 180 degree , for Concealed Mounting

Product Information

• Description

  Manufacturer: Hafele
  Item: 341.24.435

  Product Title: Mortise Hinge, 180°, for Concealed Mounting, Only for hinged door applications, 3D adjustable, Hinge: matt chrome, cover cap: gray

  Category: ,

  Item Details …

  - 3-dimensionally adjustable for door alignment with millimetre accuracy

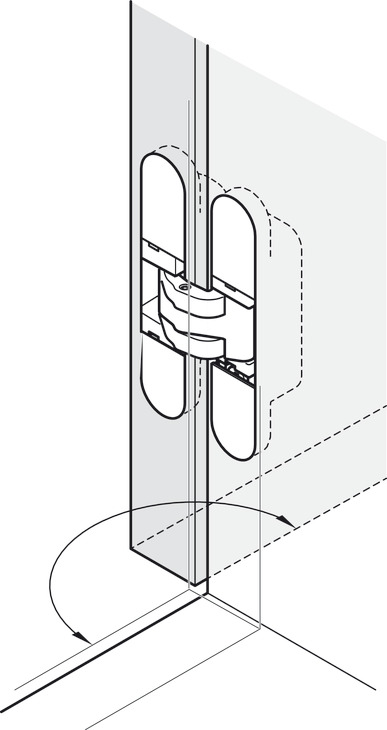

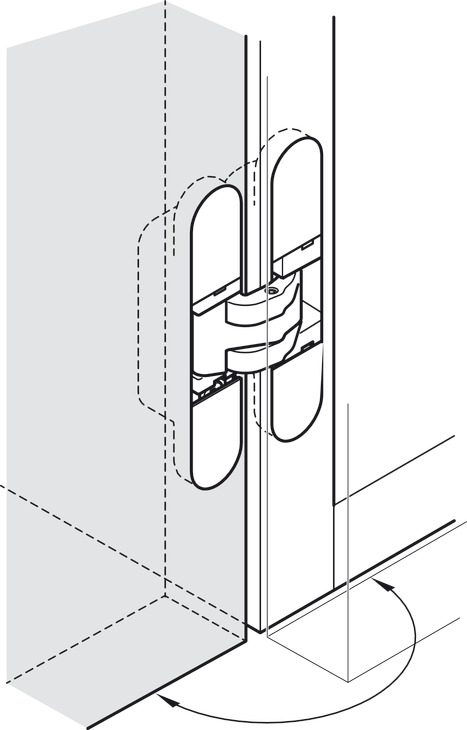

  - Area of application : For overlay or inset mounting

  - For door material : wood

  - Opening angle : 180°

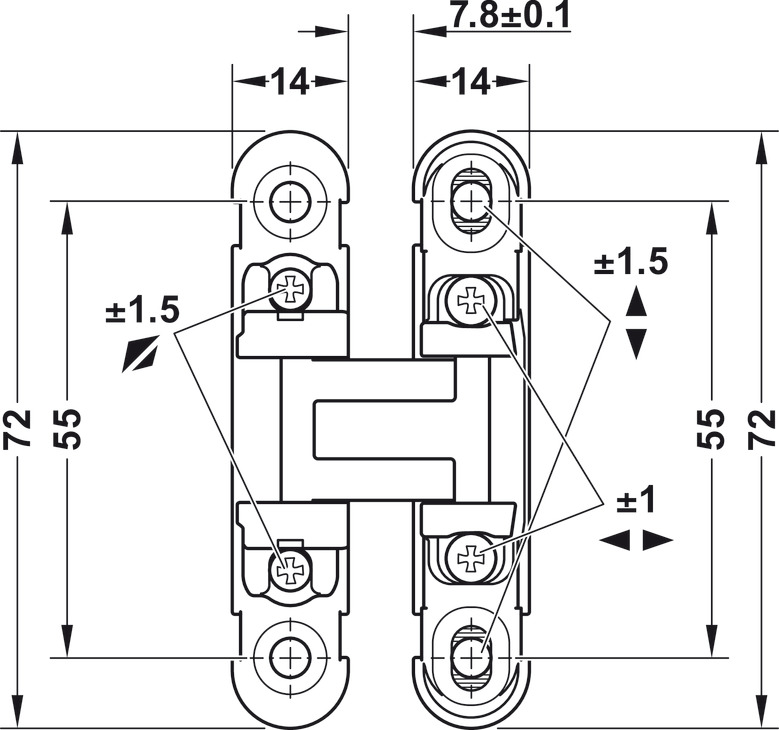

  - Adjustment facility : with overlay mounting: Height ±1.5 mm, side ±1 mm, depth ±1.5 mm,with inset mounting: Height ±1.5 mm, side ±1.5 mm, depth ±1 mm

  - Installation : for screw fixing

  - Supplied with:

  - 1 hinge

  - 4 cover caps


  Additional Information …

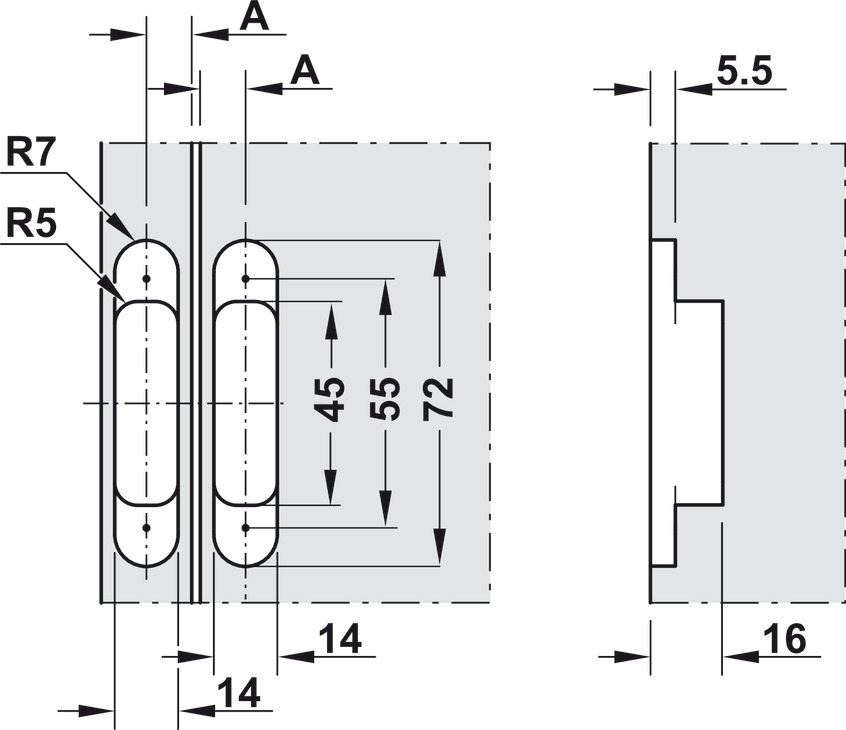

  Factory settings, gap 1.5 mmAdjustment facility gap 0–3 mmHinge is only suitable for hinged door applications!

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for inset application options

  Installation instructions for overlay application options
