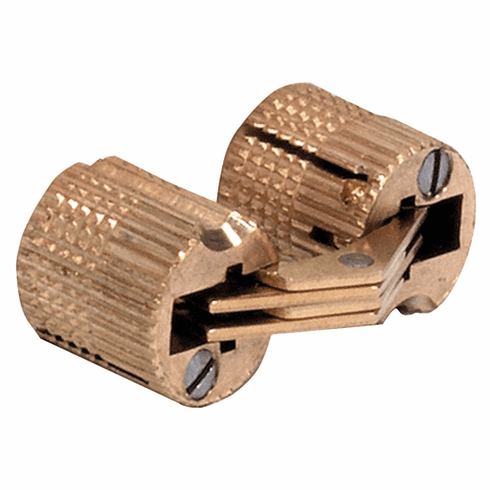

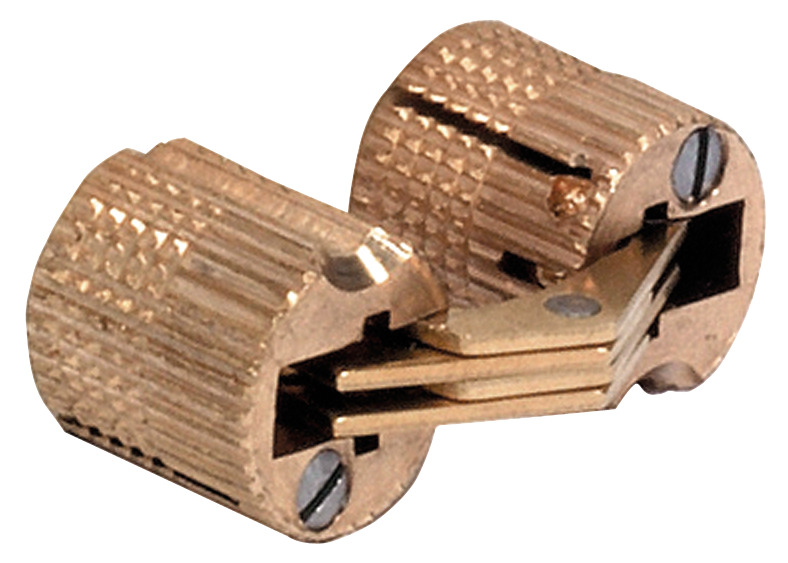

Hafele 341.21.520 Zysa Drill-In Concealed Hinge, Opening Angle 180 degree Wood thickness 17-22 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 341.21.520

  Product Title: Zysa Drill-In Concealed Hinge, Opening Angle 180°, Wood thickness 17-22 mm

  Category: Zysa Drill-In Concealed Hinge, Opening Angle 180°,

  Item Details …

  - Can be used left or right

  - Tighten the tensioning screw to ensure a secure grip in wood

  - Additional holding power for exceptionally high loads is achieved by installing a wood screw through exposed end

  - Drilling must be extremely accurate

  - Mounting : DIN left/right

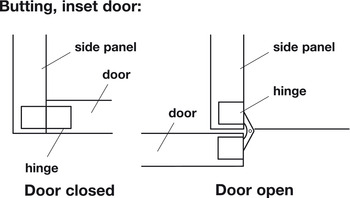

  - Area of application : For rebated doors

  - Opening angle : 180°

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.81



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.68-9.68.pdf

  Hafele 341.21.520, 341-21-520, 34121520, 341.21


  Specifications/Hafele Catalog - Page# FC9.66: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
