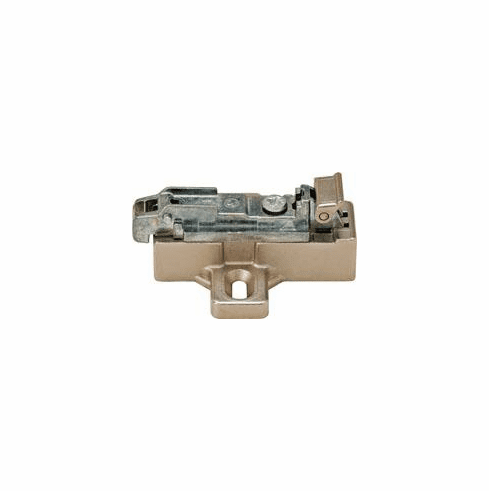

Hafele 329.85.018 Clip Mounting Plate, Duomatic SM, steel, with chipboard screws 18 mm, BAV3EV9F, zinc

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.85.018

  Product Title: Clip Mounting Plate, Salice, without Pre-Installed Mounting Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric, 18 mm, BAV3EV9F, zinc

  Category: Clip Mounting Plate, Salice, without Pre-Installed Mounting Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric

  Item Details …

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

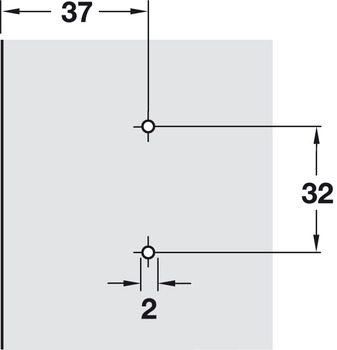

  - For drill hole Ø : 2.00 mm

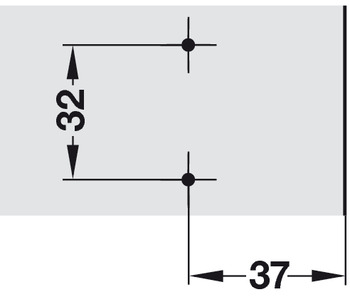

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via slot ±2 mm, Depth adjustment Via eccentric

  - Fixing method : Quick fixing system SM

  - Mounting plate version : for screw fixing with chipboard screws

  - Manufacturer : Häfele

  - Model series : Metalla 510 SM
