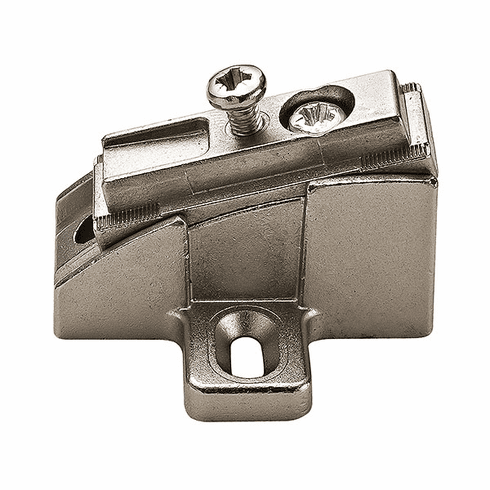

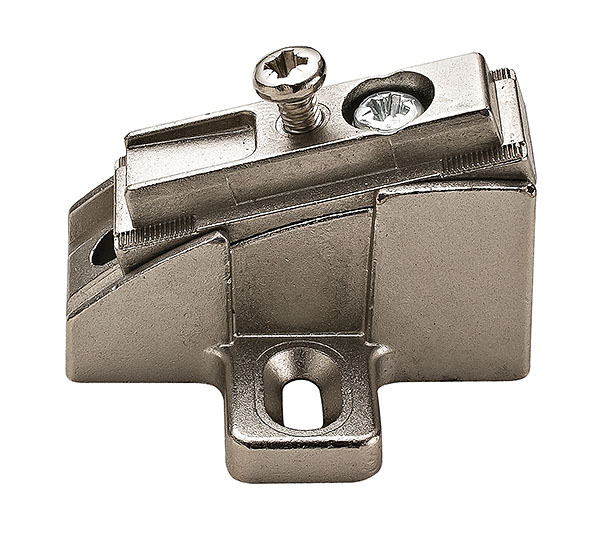

Hafele 329.84.120 Wing Mounting Plate, Duomatic A, for corner applications from +10 degree to +30 degree Model B2V3BW9S/15

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.84.120

  Product Title: Wing Mounting Plate, Salice, Slide-on, Wood Screw, Angle from +10° to +30°, Slide-on system, fixing with chipboard screws, Model B2V3BW9S/15

  Category: Wing Mounting Plate, Salice, Slide-on, Wood Screw, Angle from +10° to +30°, Slide-on system, fixing with chipboard screws, Model B2V3BW9S/15

  Item Details …

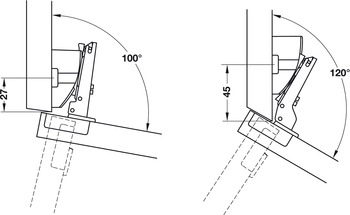

  - Area of application : For Häfele Metalla 510 concealed hingesFor corner applications from +10° to +30°

  - Material : Zinc alloy

  - Color/finish : nickel plated

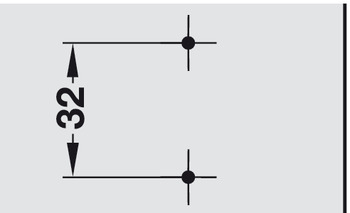

  - Screw distance : 32.00 mm

  - For mounting type : angled application

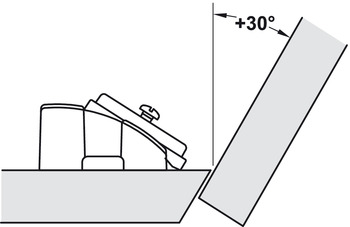

  - Adjustment facility : Height adjustment Via slot ±2 mm, Angle adjustment facility 10?–?30 °

  - Fixing method : Slide-on system A

  - Mounting plate version : for screw fixing with chipboard screws

  - Model : B2V3BW9S/15

  - Manufacturer : Häfele

  - Model series : Metalla 510 A


  Additional Information …

  The drilling distance can differ slightly depending on the corner application and should be determined by means of test mounting.
