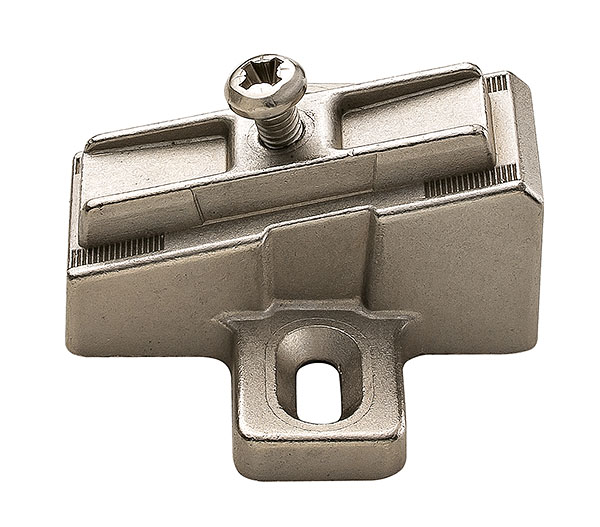

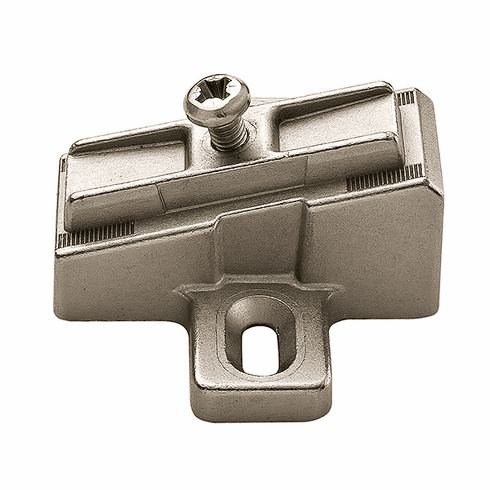

Hafele 329.84.100 Wing Mounting Plate, Salice, Slide-on, Wood Screw, Angle 15 degree model B2V3BW9/15

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.84.100

  Product Title: Wing Mounting Plate, Salice, Slide-on, Wood Screw, Angle 15°, model B2V3BW9/15

  Category: Wing Mounting Plate, Salice, Slide-on, Wood Screw, Angle 15°, model B2V3BW9/15

  Item Details …

  - Material : Zinc alloy

  - Color/finish : nickel plated

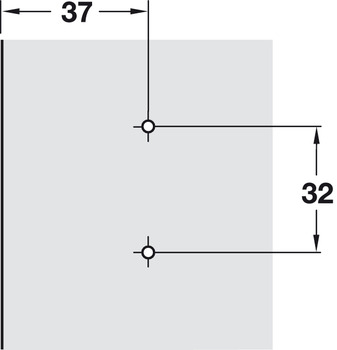

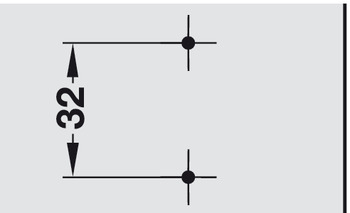

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via slot ±2 mm

  - Mounting plate version : for screw fixing with chipboard screws

  - Distance : 18.00 mm

  - Model : B2V3BW9/15

  - Manufacturer : Häfele

  - Model series : Metalla 510 A

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.42



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.38-9.43.pdf

  Hafele 329.84.100, 329-84-100, 32984100, 329.84
