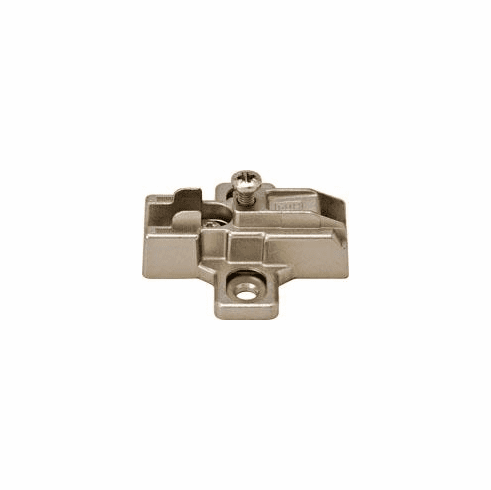

Hafele 329.80.680 Slide-On Mounting Plate, Salice, with Hinge Arm, Fastening Screws 9 mm, model B2R3E99/15

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.80.680

  Product Title: Slide-On Mounting Plate, Salice, with Hinge Arm, Fastening Screws, slide-on system, pre-mounted Euro screws, 9 mm, model B2R3E99/15

  Category: Slide-On Mounting Plate, Salice, with Hinge Arm, Fastening Screws, slide-on system, pre-mounted Euro screws

  Item Details …

  - Material : Zinc alloy

  - Color/finish : nickel plated

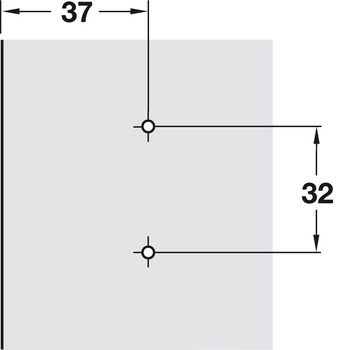

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via slot ±2 mm

  - Mounting plate version : for screw fixing with chipboard screws

  - Manufacturer : Häfele

  - Model series : Metalla 510 A
