Hafele 329.80.528 Cruciform Mounting Plate, Duomatic A, steel, with chipboard screws, edge distance 37 mm Model B2V3H09/15

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.80.528

  Product Title: Cruciform Mounting Plate, Salice A, steel, with chipboard screws, edge distance 37 mm, slide-on system, pre-mounted Euro screws, Model B2V3H09/15

  Category: Cruciform Mounting Plate, Salice A, steel, with chipboard screws, edge distance 37 mm, slide-on system, pre-mounted Euro screws

  Item Details …

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

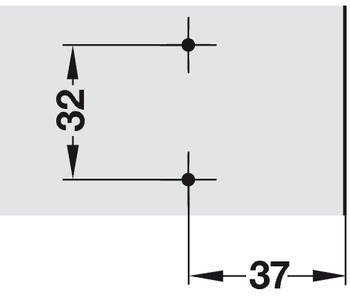

  - Screw distance : 32.00 mm

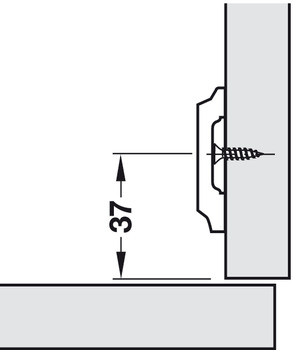

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via slot ±2 mm

  - Fixing method : Slide-on system A

  - Mounting plate version : for screw fixing with chipboard screws

  - Distance :

  - Manufacturer : Häfele

  - Model series : Metalla 510 A

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  Hafele 329.80.528 Salice B2V3H09/15 Slide-On Mpl Woodscrew St Nip 0Mm Mod 2 (4X6X0.5 Cm)


  Product Specifications:
  Contact us for more information.
