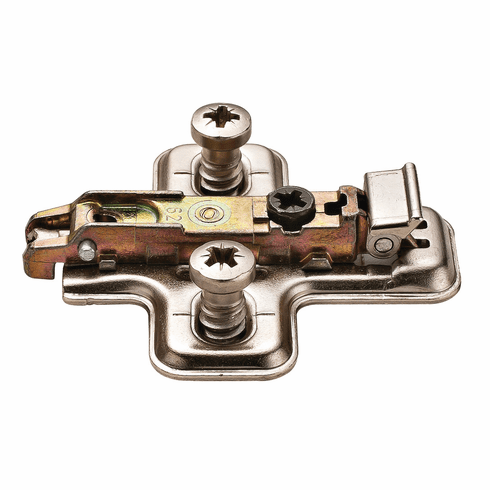

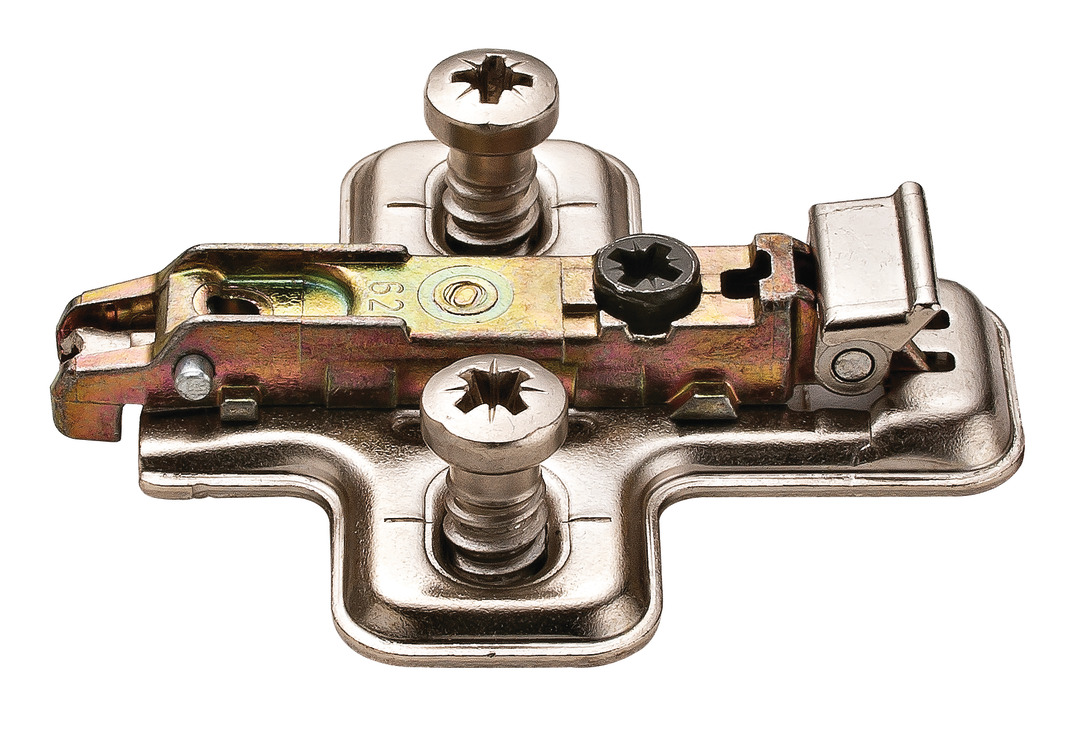

Hafele 329.74.516 Clip Mounting Plate, Salice, with quick fixing system

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.74.516

  Product Title: Clip Mounting Plate, Salice, with quick fixing system, With pre-mounted Euro screws, Distance D: 6 mm, drilling depth: 11 mm

  Category: ,

  Item Details …

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

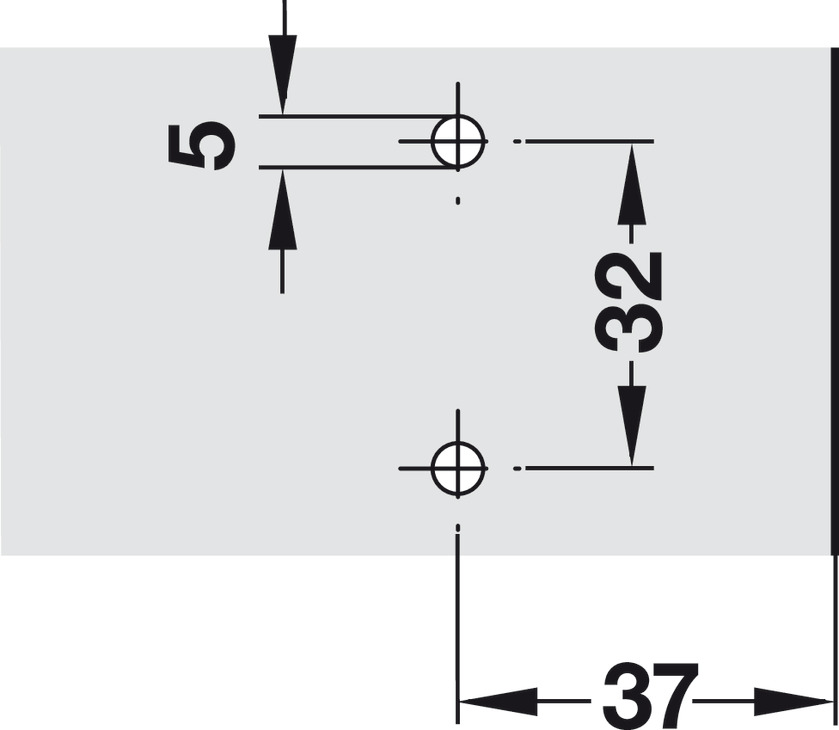

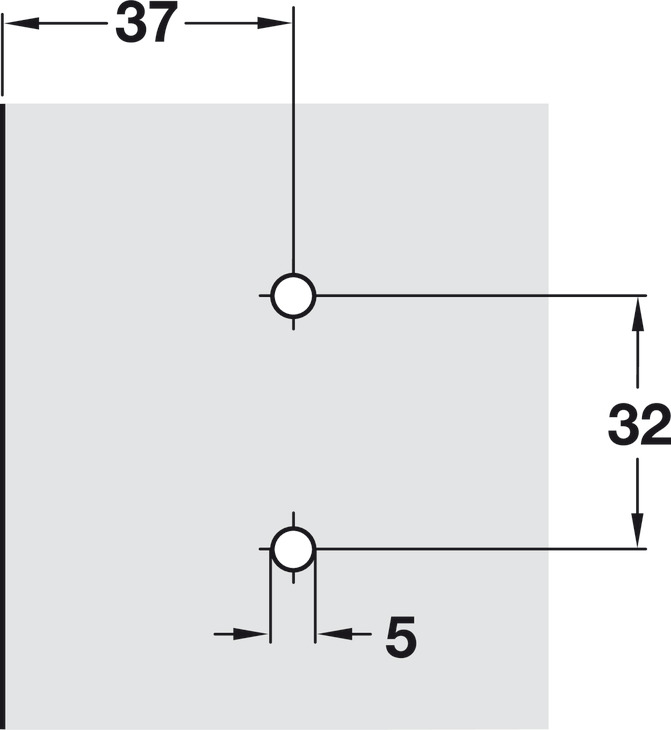

  - For drill hole Diameter: : 5.00 mm

  - For side panel thickness :

  - Drilling depth : 11.00 mm

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via slot ±2 mm, Depth adjustment Via eccentric

  - Fixing method : Quick fixing system SM

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Manufacturer : Häfele

  - Model series : Metalla 510 SM

• Data Sheet

  Detailed Data Sheet

• Required Products & Optional Accessories

  Optional Accessories:



  • Clip Mounting Plate, Salice, without Pre-Installed Mounting Screws
