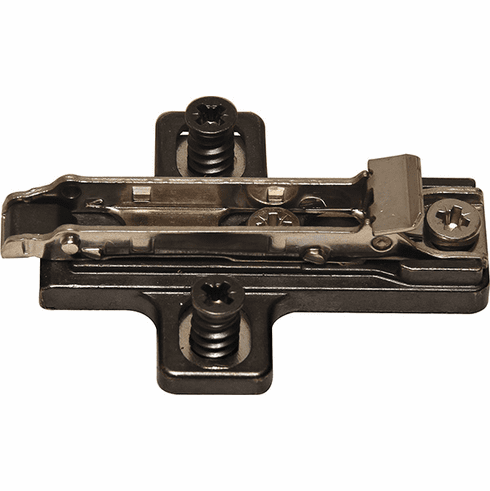

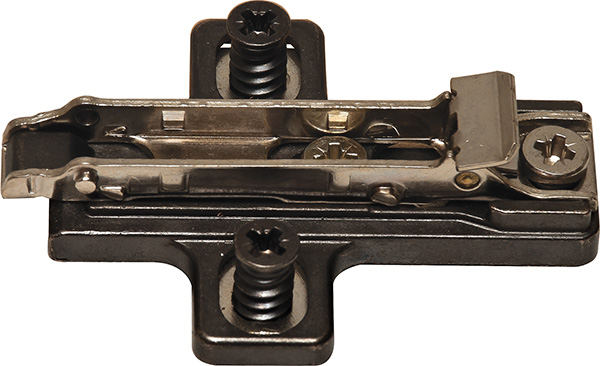

Hafele 329.71.562 Mounting Plate, Salice, With Pre-Installed 11 mm Euro Screws and Depth Adjustment 11 mm Euro screws, 2 mm, BARGR26/16, titanium finish

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.71.562

  Product Title: Mounting Plate, Salice, With Pre-Installed Euro Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric, 11 mm Euro screws, 2 mm, BARGR26/16, titanium finish

  Category: Mounting Plate, Salice, With Pre-Installed Euro Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric

  Item Details …

  - Spring lever

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Zinc alloy

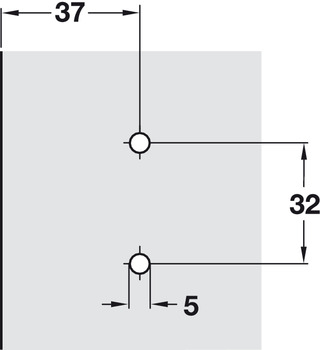

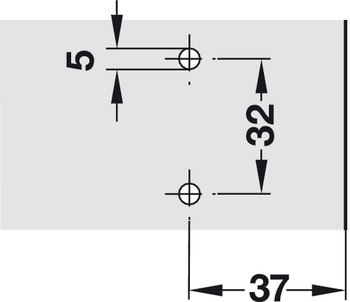

  - For drill hole Ø : 5.00 mm

  - For side panel thickness :

  - For center panel thickness :

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

  - Fixing method : Quick fixing system SM

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Manufacturer : Häfele

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.38



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.38-9.43.pdf

  Hafele 329.71.562, 329-71-562, 32971562, 329.71
