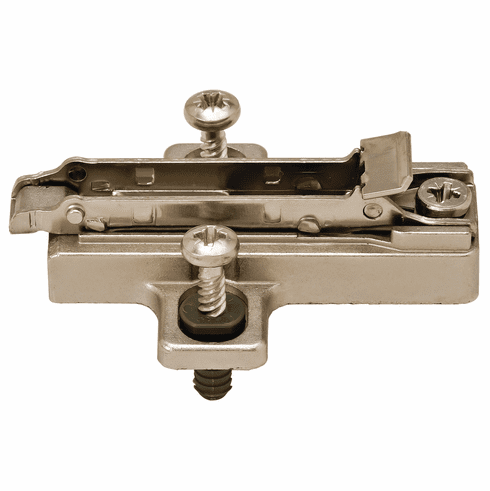

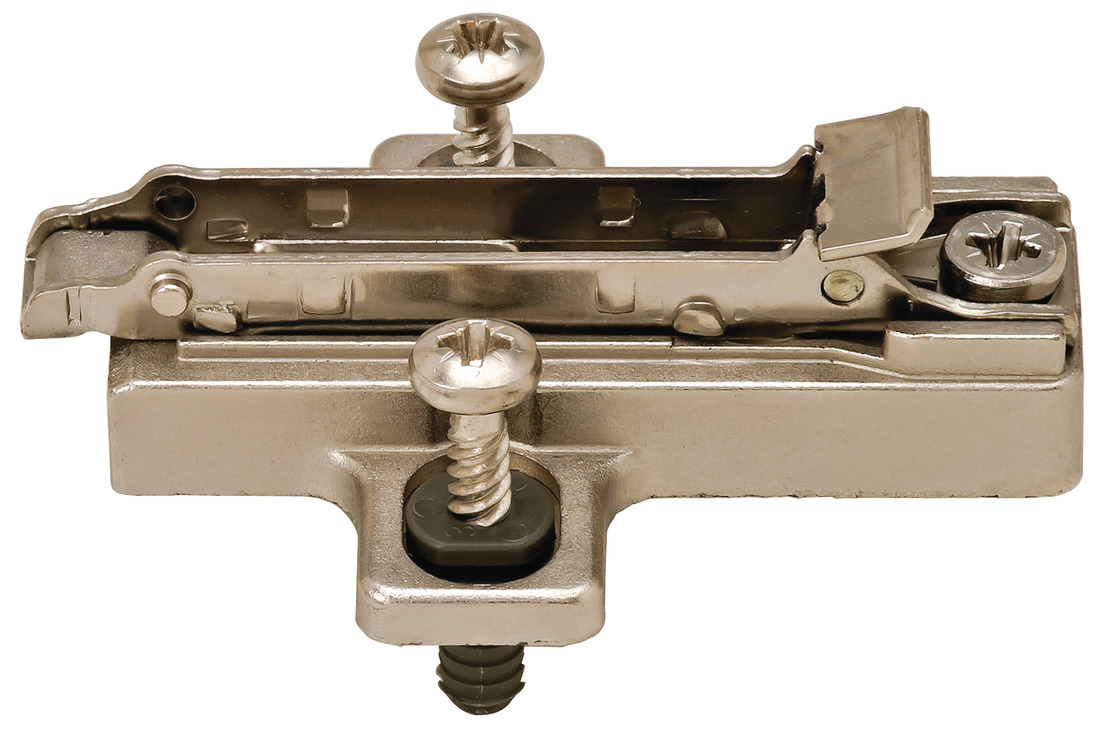

Hafele 329.71.523 Clip Mounting Plate, Duomatic SM, zinc alloy, with pre-mounted special screws and spreading dowels for screw fixing, 3 mm, BAR4R39/16

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.71.523

  Product Title: Clip Mounting Plate, Salice SM, zinc alloy, with pre-mounted special screws and spreading dowels, for screw fixing, 3 mm, BAR4R39/16

  Category: Clip Mounting Plate, Salice SM, zinc alloy, with pre-mounted special screws and spreading dowels, for screw fixing

  Item Details …

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Zinc alloy

  - Color/finish : nickel plated

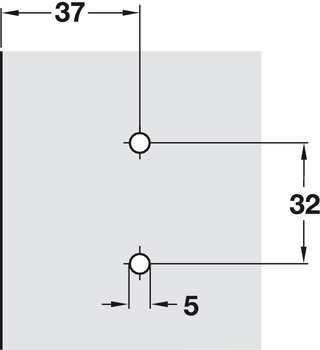

  - For drill hole Ø : 5.00 mm

  - For side panel thickness : 19 mm

  - Drilling depth : 11.00 mm

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

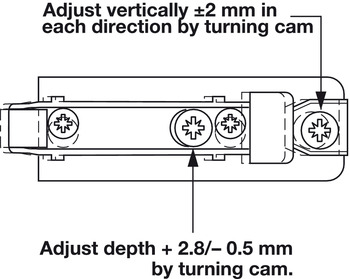

  - Adjustment facility : Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

  - Fixing method : Quick fixing system SM

  - Mounting plate version : For screw fixing with pre-mounted special screws and spreading dowels

  - Manufacturer : Häfele

  - Model series : Metalla 510 SM


  Additional Information …

  Vertical & depth adjustments made with Pozi drive #2

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.38



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.38-9.43.pdf

  Hafele 329.71.523, 329-71-523, 32971523, 329.71


  Specifications/Hafele Catalog - Page# FC9.41: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
