Hafele 329.71.510 Mounting Plate, Salice, With Pre-Installed 11 mm Euro Screws and Depth Adjustment 11 mm Euro screws, 0 mm, BARGR09/16, nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.71.510

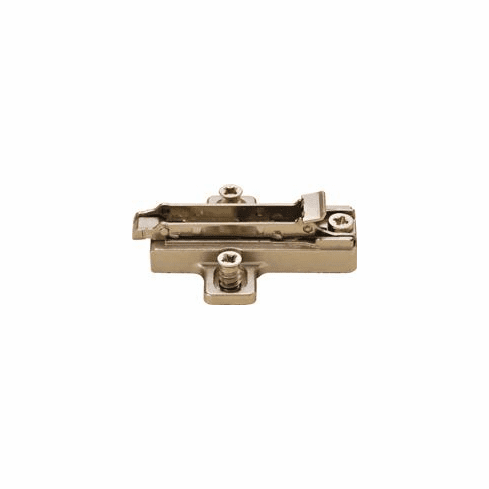

  Product Title: Mounting Plate, Salice, With Pre-Installed Euro Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric, 11 mm Euro screws, 0 mm, BARGR09/16, nickel-plated

  Category: Mounting Plate, Salice, With Pre-Installed Euro Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric

  Item Details …

  - Spring lever

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Zinc alloy

  - For drill hole Ø : 5.00 mm

  - For side panel thickness : 19 mm

  - For center panel thickness :

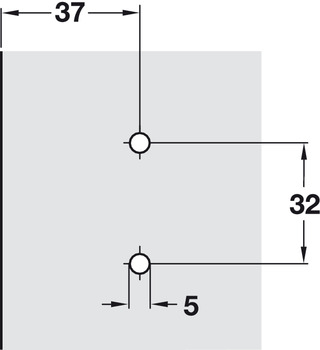

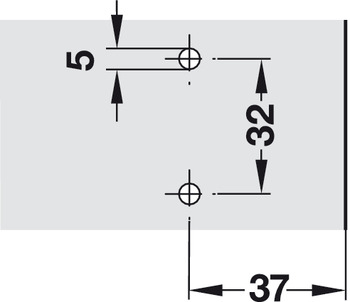

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

  - Fixing method : Quick fixing system SM

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Manufacturer : Häfele

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.186

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.38



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.38-9.43.pdf

  Hafele 329.71.510, 329-71-510, 32971510, 329.71


  Specifications/Hafele Catalog - Page# FC9.41: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
