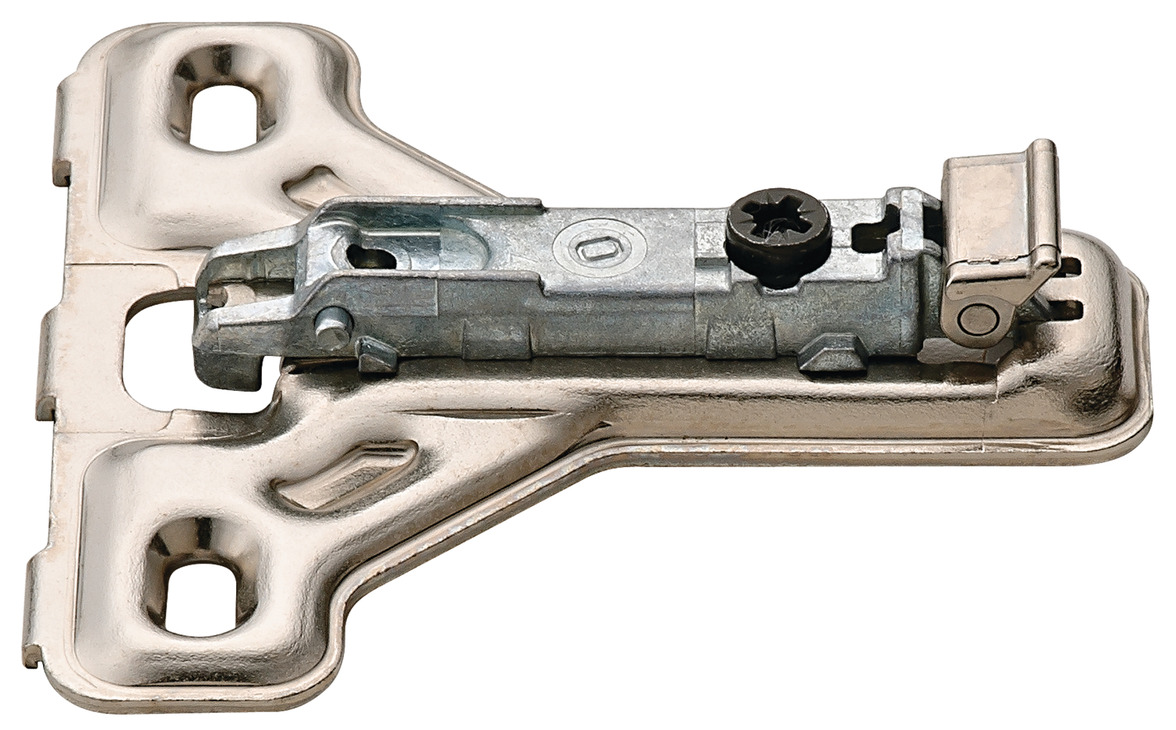

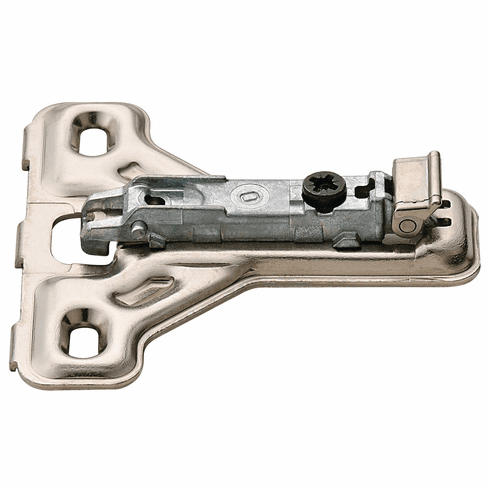

Hafele 329.64.531 Face Frame Wing Mounting Plate, Salice, Silentia, Screw-mounted 1 mm for 3/4" Overlay, BAU3L19

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.64.531

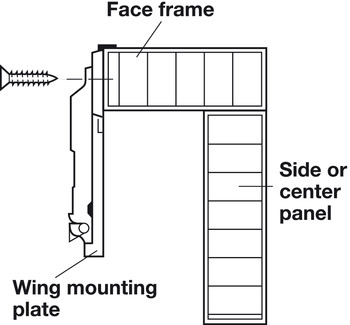

  Product Title: Face Frame Wing Mounting Plate, Salice, Silentia, Screw-mounted, 1 mm for 3/4" Overlay, BAU3L19

  Category: Face Frame Wing Mounting Plate, Salice, Silentia, Screw-mounted,

  Item Details …

  - Material : Steel

  - Color/finish : nickel plated

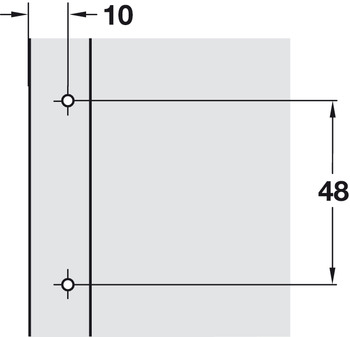

  - Screw distance : 48.00 mm

  - Edge distance : 10.00 mm

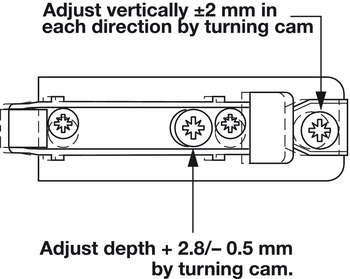

  - Adjustment facility : Depth adjustment Via eccentric -0.5 mm to +2.8 mm

  - Manufacturer : Häfele

  - Model series : Salice

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.37



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.38-9.43.pdf

  Hafele 329.64.531, 329-64-531, 32964531, 329.64


  Specifications/Hafele Catalog - Page# FC9.40: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
