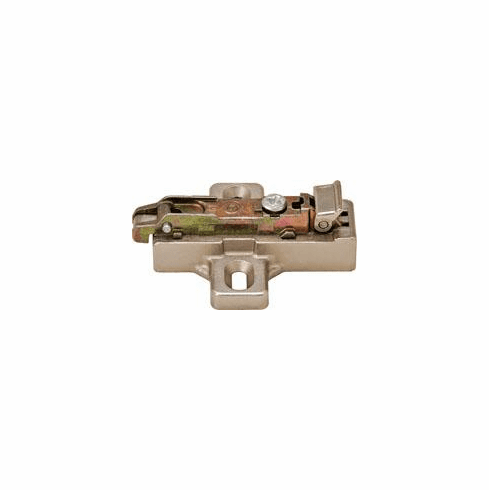

Hafele 329.62.691 Clip Mounting Plate, Duomatic SM, steel, with chipboard screws 9 mm, BAV3E99F, zinc

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.62.691

  Product Title: Clip Mounting Plate, Salice, without Pre-Installed Mounting Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric, 9 mm, BAV3E99F, zinc

  Category: Clip Mounting Plate, Salice, without Pre-Installed Mounting Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric

  Item Details …

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

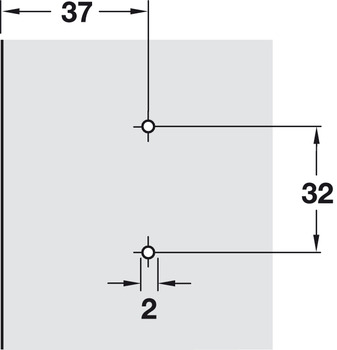

  - For drill hole Ø : 2.00 mm

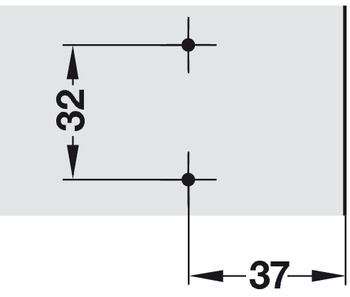

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via slot ±2 mm, Depth adjustment Via eccentric

  - Fixing method : Quick fixing system SM

  - Mounting plate version : for screw fixing with chipboard screws

  - Manufacturer : Häfele

  - Model series : Metalla 510 SM

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.38-9.43.pdf

  Hafele 329.62.691, 329-62-691, 32962691, 329.62


  Specifications/Hafele Catalog - Page# FC9.43: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
