Hafele 329.44.330 Door Catch, for Screw-mount Catch Salice, DP29SN3I, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.44.330

  Product Title: Door Catch, for Screw-mount Catch, Salice, DP29SN3I, black

  Category: Door Catch, for Screw-mount Catch, Salice, DP29SN3I, black

  Item Details …

  - For doors taller than 1600 mm (63”), 2 push latches are recommended

  - Installation : Cabinet, top or base panel

  - Model : DP29SN3I

  - Color/finish : Black

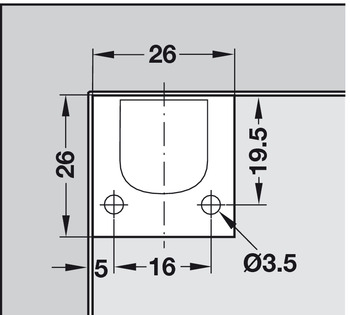

  - Width : 26.00 mm

  - Height : 26.00 mm

  - Version : With positioning aid

  - Area of application : For inset doors

  - Material : Plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.31



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.30-9.33.pdf

  Hafele 329.44.330, 329-44-330, 32944330, 329.44
