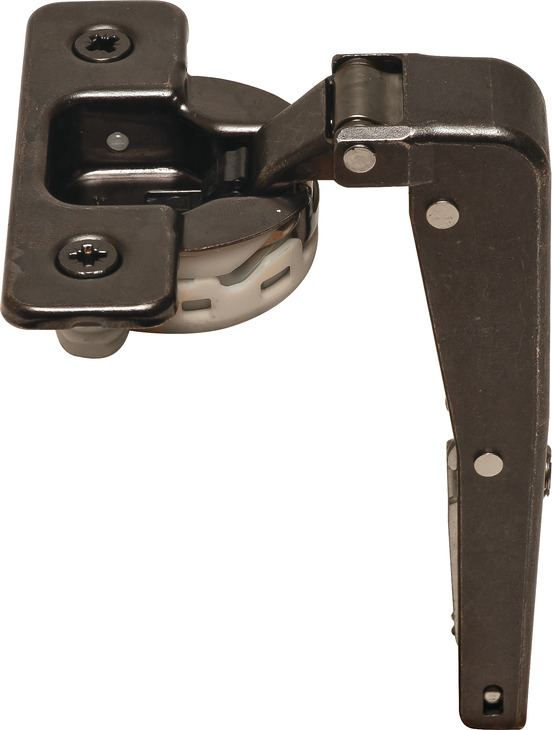

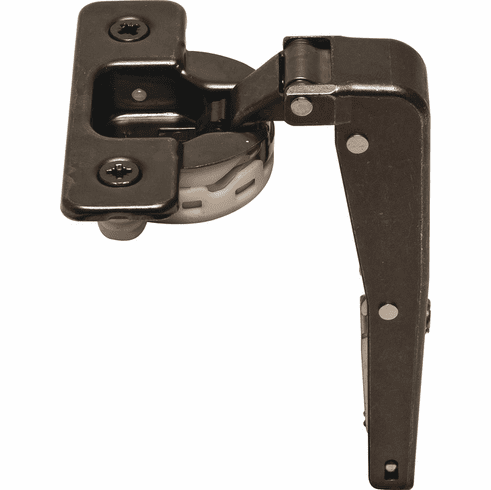

Hafele 329.31.515 Blind Corner Concealed Hinge, Salice, 94 degree Opening Angle, Self Close, Inset Mounting, Nickel-Plated Special Application, Press-fitting, model C2RBN99AC

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.31.515

  Product Title: Blind Corner Concealed Hinge, Salice, 94° Opening Angle, Self Close, Inset Mounting, Nickel-Plated, Special Application, Press-fitting, model C2RBN99AC

  Category: Blind Corner Concealed Hinge, Salice, 94° Opening Angle, Self Close, Inset Mounting, Nickel-Plated, Special Application

  Item Details …

  - Area of application : Blind corner

  - Version : With automatic closing spring

  - Concealed hinge version : blind corner application

  - Crank type :

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 94°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing :

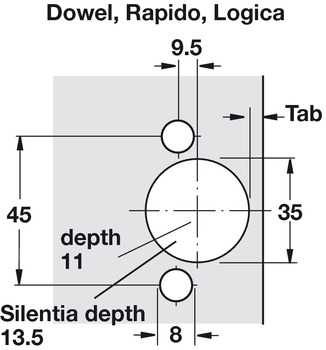

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment <4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

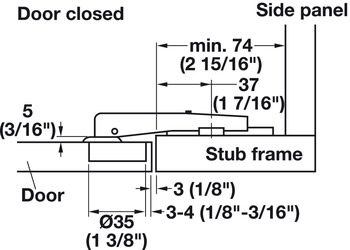

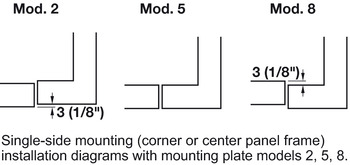

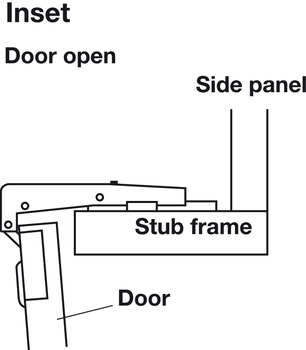

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM

  - Order reference

  - suitable for all Metalla 510 A and Metalla 510 SM mounting plates


  Additional Information …

  suitable for all Metalla 510 A and Metalla 510 SM mounting plates
