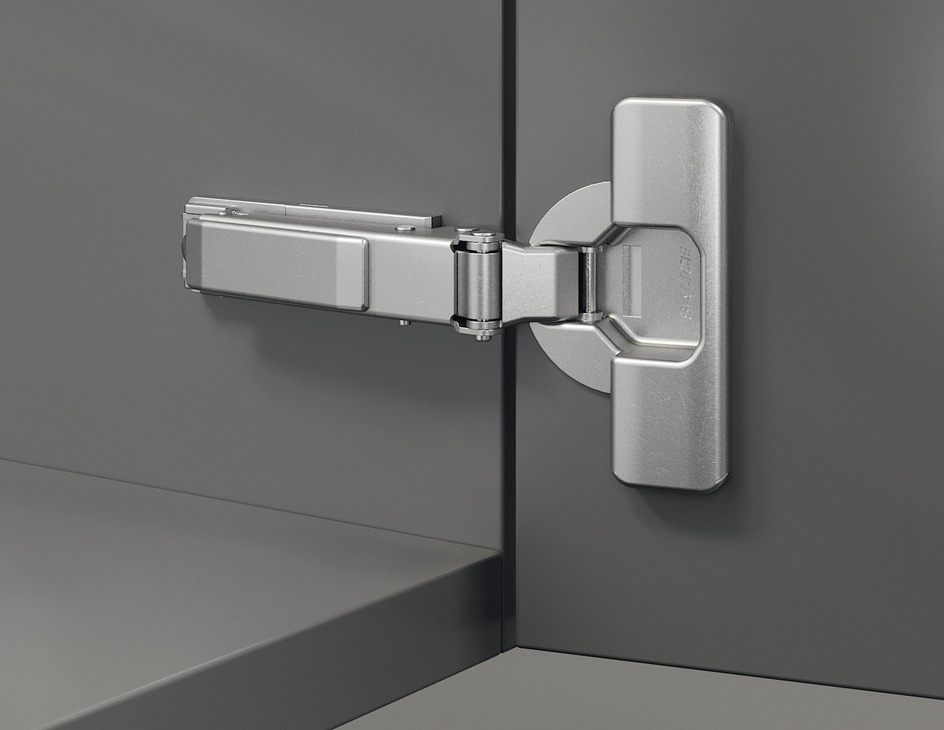

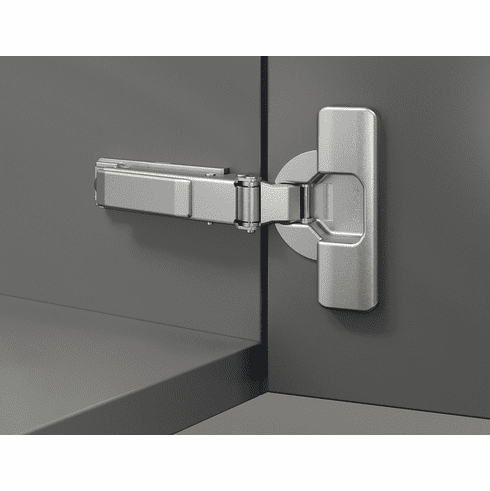

Hafele 329.31.282 Concealed Hinge, Salice 200 Series, 94 degree Opening Angle, Silentia+, Nickel Plated Half Overlay, C2JBGE9, Logica

Product Information

• Description

  Hafele 329.31.282 Concealed Hinge, Salice 200 Series, 94° Opening Angle, Silentia+, Nickel Plated
  Half Overlay, C2JBGE9, Logica



  Opening angle : 94 °

  Type of closing : New soft close adjustment switch

  For door thickness : (11/16 - 1 3/8") 18 - 35 mm

  Tab : 3 - 9 mm

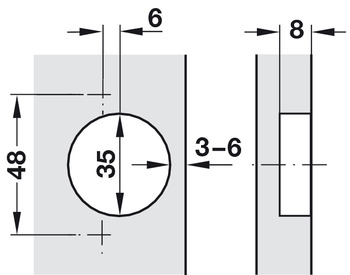

  Drilling pattern : 45/9.5 mm

  Material : Steel

  Finish : Nickel-plated



  Order reference :

  Mounting plates sold separately
