Hafele 329.28.502 Thin Door Concealed Hinge, Salice, 105 degree Opening Angle, Self Close, Screw Mounting Half overlay, self-close, model C1P6G99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.28.502

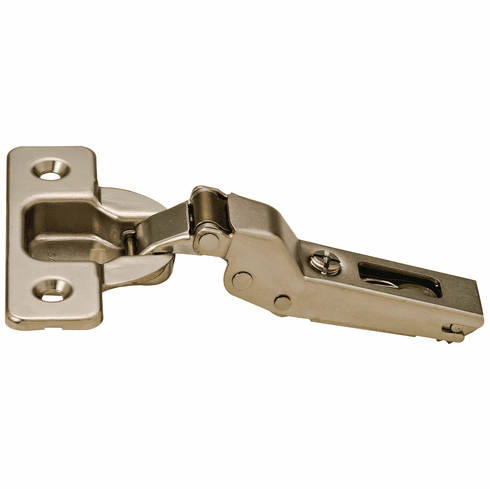

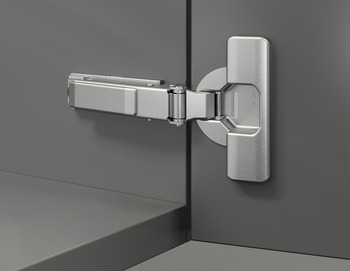

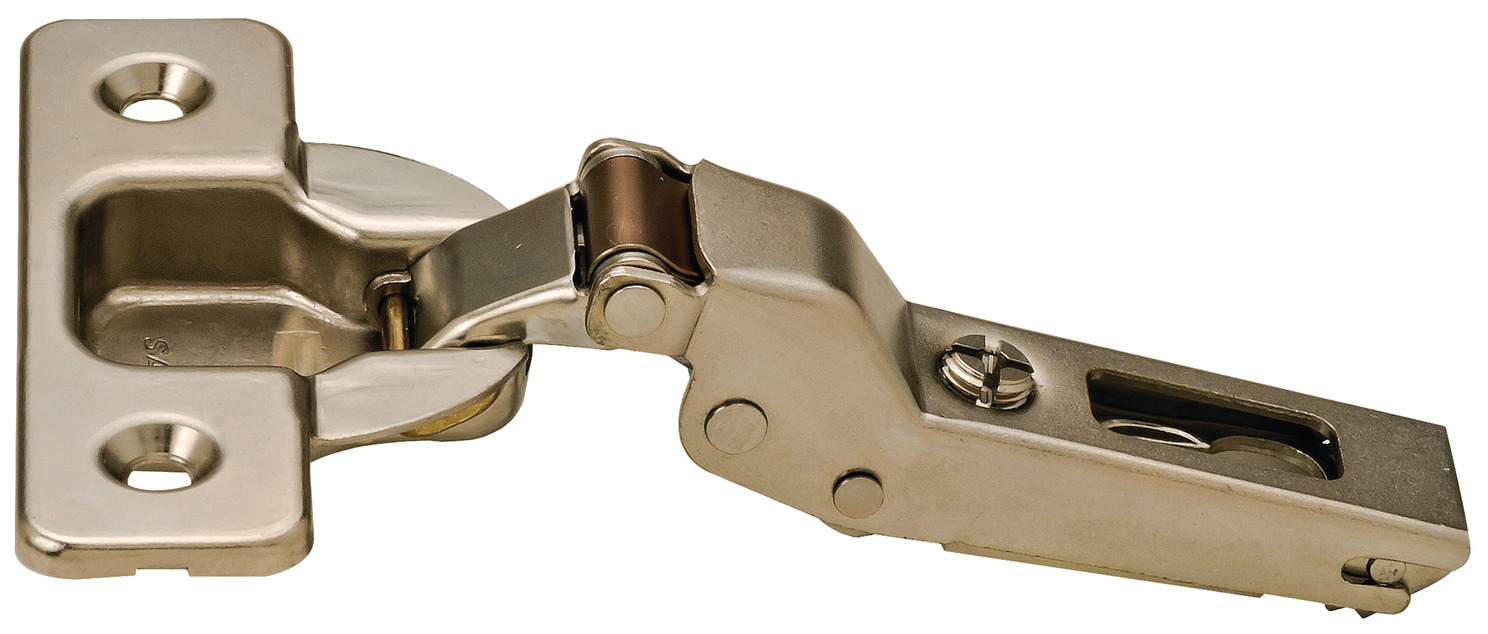

  Product Title: Thin door concealed hinge, Salice, 105° opening angle, Half overlay, self-close, screw-mount, model C1P6G99

  Category: Thin door concealed hinge, Salice, 105° opening angle

  Item Details …

  - Area of application : For doors with deep profiles

  - Crank type : Cranked

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 105°

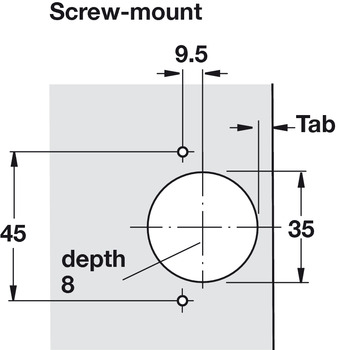

  - Cup drilling depth : 8.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.18



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.19-9.19.pdf
