Hafele 329.28.471 Concealed Hinge, Salice 100 Series, 105 degree Opening Angle, Silentia+, Nickel Plated 1/2" Overlay, C1R6DE9, Dowel

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.28.471

  Product Title: Concealed Hinge, Salice 100 Series, 105° Opening Angle, Silentia+, Nickel Plated, 1/2" Overlay, C1R6DE9, Dowel

  Category: Concealed Hinge,

  Item Details …

  - Impervious to temperature extremes

  - Exceeds ANSI/BHMA standards A156.9 2010

  - Area of application : For wood doors

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 105°

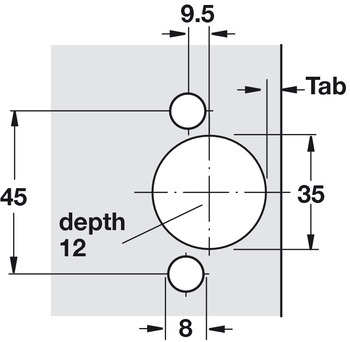

  - Drilling pattern : 45/9.5

  - Order reference

  - Mounting plates sold separately

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.17
