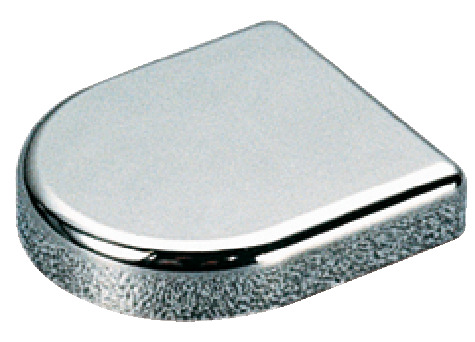

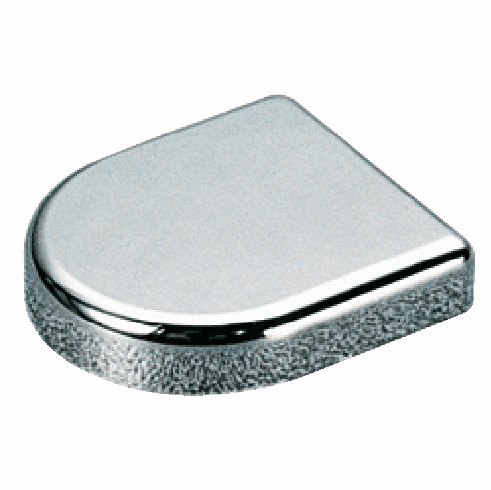

Hafele 329.22.220 Trim Cap, For Duomatic 94 degree glass door hinges Salice, polished chrome

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.22.220

  Product Title: Trim Cap, Salice, Round, for 94° Glass Door Hinges, round, polished chrome

  Category: Trim Cap, Salice, Round, for 94° Glass Door Hinges, round

  Item Details …

  - Suitable for : Häfele Metalla 510 94° glass door hinges

  - With lettering : Without

  - Material : Plastic

  - Diameter : 30.00 mm

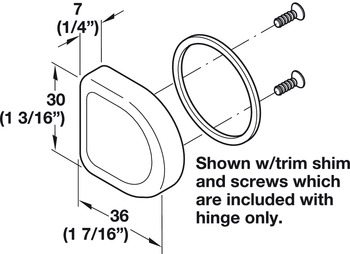

  - Dim. (L x W x H) : 36 x 30 x 7 mm

  - Dim. (Ø x H) : 30 x 7 mm

  - Installation : Plug fitting

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.176



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.158-9.159.pdf

  Hafele 329.22.220, 329-22-220, 32922220, 329.22
