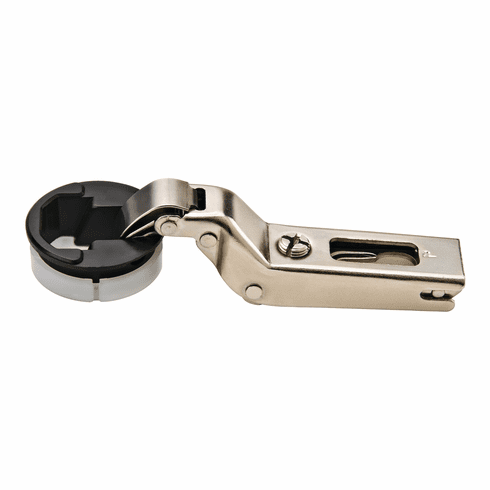

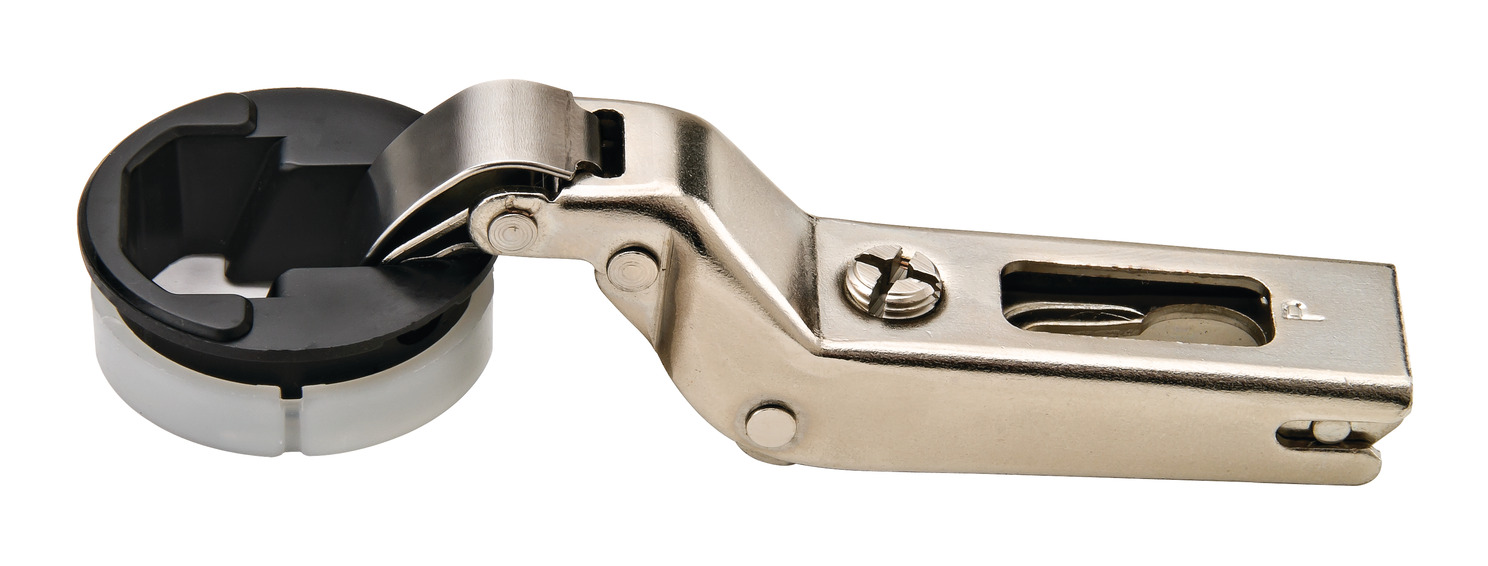

Hafele 329.21.532 Glass Door Concealed Hinge, Salice, 94 degree Opening Angle, Self Closing, Inset Mounting model C2C7P39

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.21.532

  Product Title: Glass Door Concealed Hinge, Salice, 94° Opening Angle, Self Closing, Inset Mounting, For screwing into 26 mm cup drilling, model C2C7P39

  Category: Glass Door Concealed Hinge, Salice, 94° Opening Angle, Self Closing, Inset Mounting, For screwing into 26 mm cup drilling, model C2C7P39

  Item Details …

  - Area of application : For glass doors

  - Version : With automatic closing spring

  - Concealed hinge version : inset

  - Crank type : Cranked

  - For door material : glass

  - Door processing for assembly : with glass drilling

  - Material : Cup: Plastic, Hinge arm: Steel

  - Color/finish : Cup: Black, Hinge arm: nickel plated

  - Opening angle : 94°

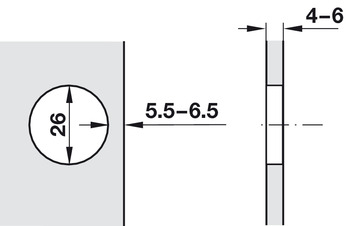

  - For glass thickness : 4?–?6 mm

  - For glass thickness (inches) : 3/16"?–?1/4"

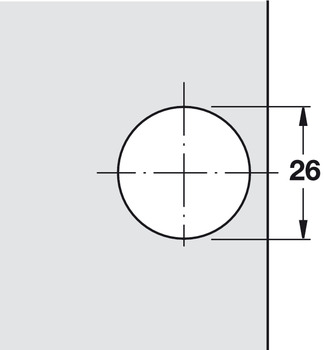

  - Cup drilling Ø : 26.00 mm

  - Cup fixing : for screw fixing

  - Adjustment facility : Side adjustment -0.5?–?5.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM

  - Supplied with:

  - Trim shim and screws included
