Hafele 329.20.700 Concealed Hinge, For Wooden Doors, For Concealed Mounting

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.20.700

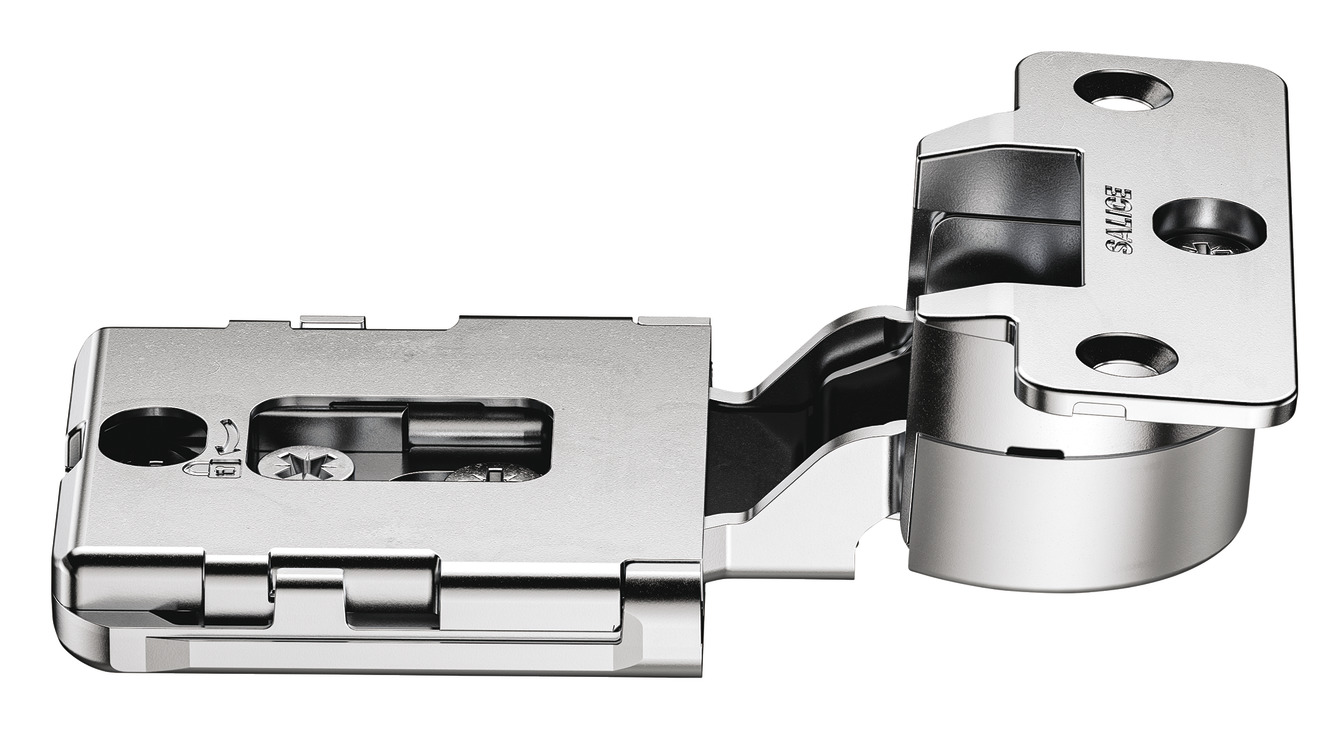

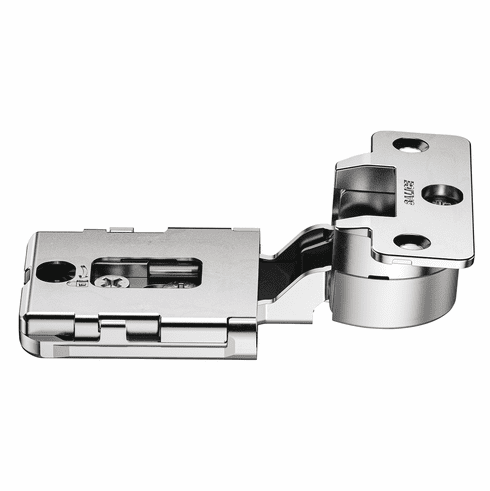

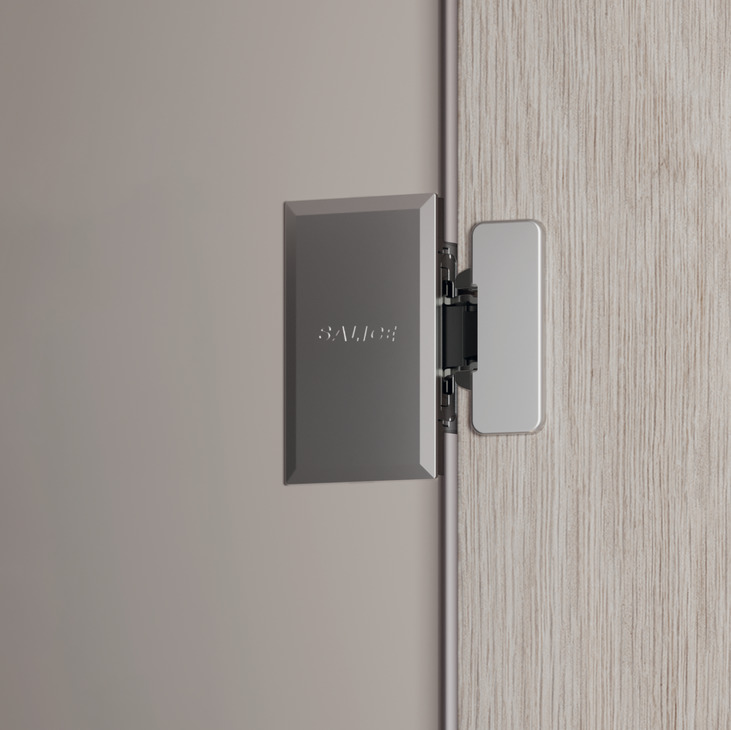

  Product Title: Concealed Hinge, Salice Conecta, 94°, for wooden doors, for concealed mounting, for full overlay/half overlay mounting, Matt nickel plated

  Category: Concealed Hinge, Salice Conecta, 94°, for wooden doors, for concealed mounting, for full overlay/half overlay mounting

  Item Details …

  - Area of application : for wooden doors, concealed

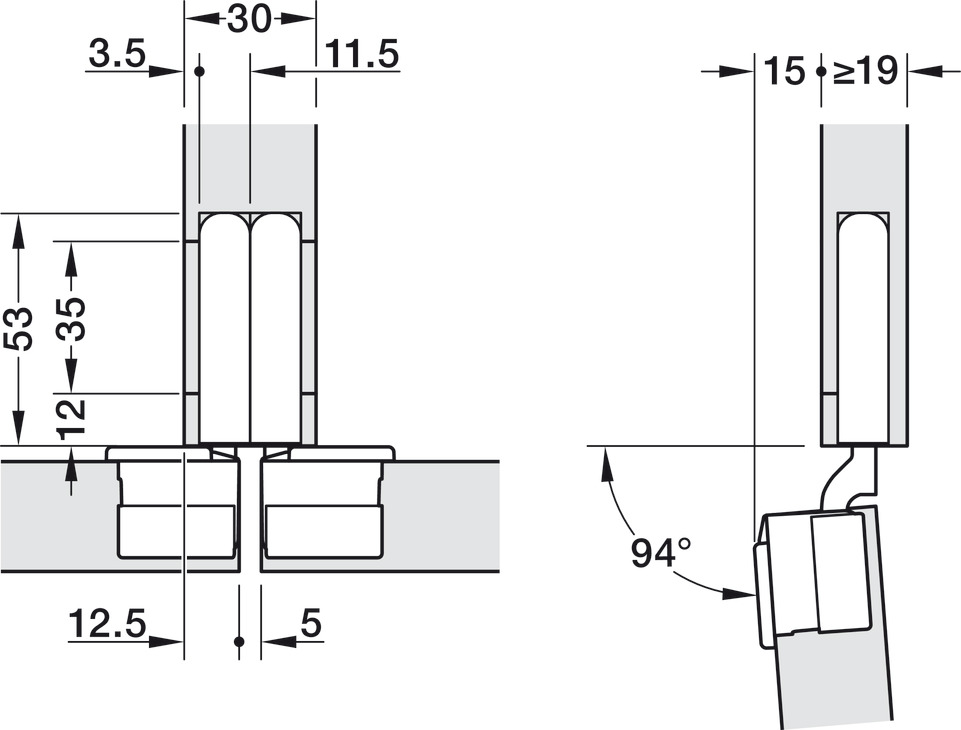

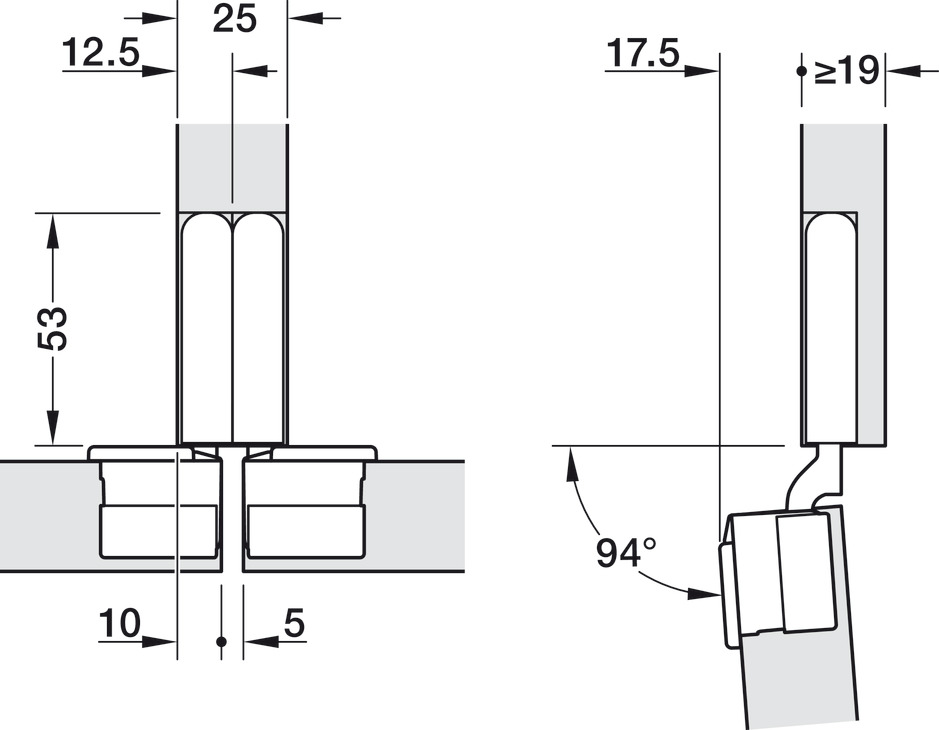

  - Version : Door overlay 12.5 mm with fully integrated hinge pocket,Door overlay 10 mm with partially integrated hinge pocket

  - Version : With soft closing mechanism

  - Concealed hinge version : Full overlay/half overlay mounting

  - Crank type : Cranked

  - Material : Steel

  - Opening angle : 94°

  - For door thickness : 25?–?30 mm

  - Cup drilling depth : 22.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern : 48/6

  - Adjustment facility : Side adjustment: 2 mm, Height adjustment: -2.5?–?2.5 mm, using eccentric

  - Installation : fully integrated or partially integrated installation, for sliding into side panel

  - Order reference

  - Please order holder for insertion separately.

  - Supplied with:

  - 2 concealed hinges

  - 4 fixing screws

  - 2 cover caps

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Required Products & Optional Accessories

  Optional Accessories:



  • Hinge Pocket, Salice Conecta
  • Concealed Hinge, Salice Conecta, 94°, for wooden doors, for concealed mounting
