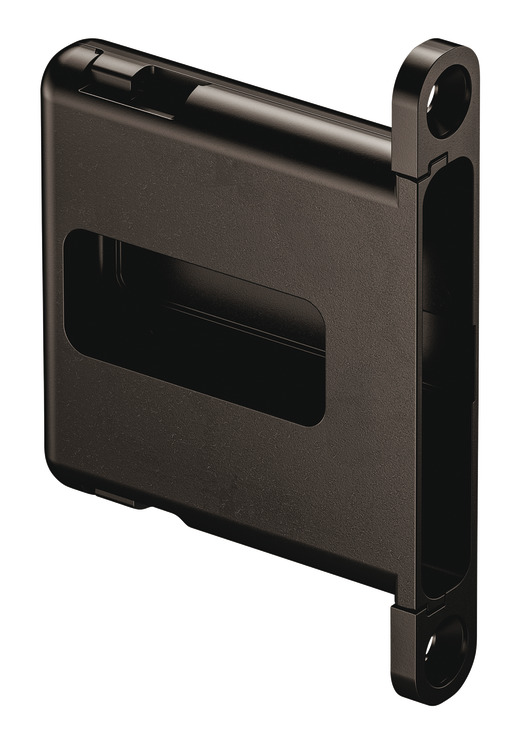

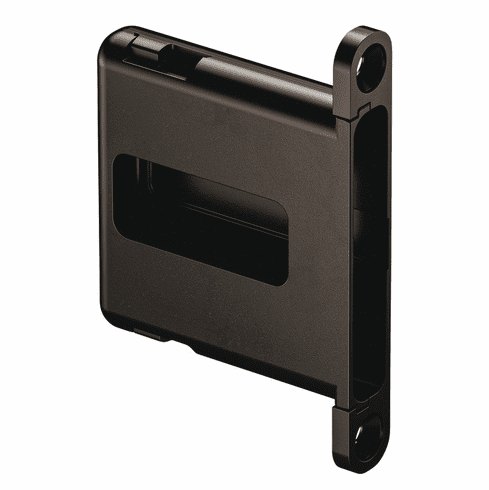

Hafele 329.20.191 Hinge Pocket, Fully Integrated

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.20.191

  Product Title: Hinge Pocket, Salice Conecta, for single door applications, steel, titanium colored

  Category: Hinge Pocket, Salice Conecta, for single door applications, steel, titanium colored

  Item Details …

  - Area of application : For concealed hinge, full overlay mounting or half overlay mounting

  - Material : Steel

  - Color/finish : Titanium colored

  - For side panel thickness :

  - For side panel thickness : (1 5/16")

  - For center panel thickness :

  - Mounting plate version :

  - Model : DQG3B

  - Installation reference : from the front, for sliding into side panel and screw fixing into drill hole Ø 4 x 25 mm

  - Supplied with:

  - 2 fully integrated holders for insertion

  - 4 fixing screws

  - 2 cover caps

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Required Products & Optional Accessories

  Optional Accessories:



  • Concealed Hinge, Salice Conecta, 94°, for wooden doors, for concealed mounting
  • Concealed Hinge, Salice Conecta, 94°, for wooden doors, for concealed mounting
