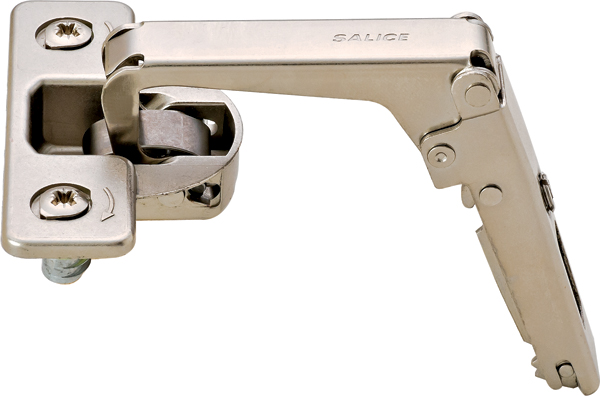

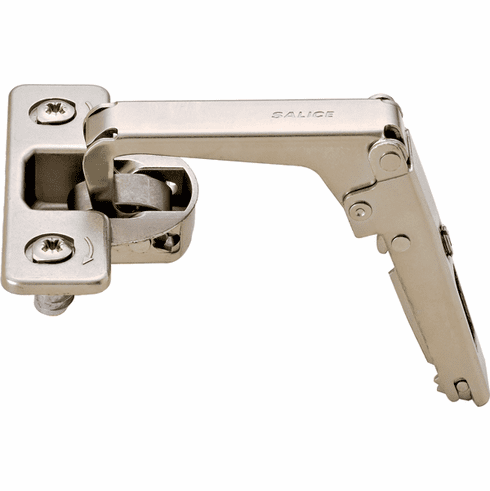

Hafele 329.19.620 Pie-Cut Corner Hinge, Salice, 70 degree Opening Angle, Self Close, Nickel-Plated Rapido mounting, model C27YA99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.19.620

  Product Title: Pie-Cut Corner Hinge, Salice, 70° Opening Angle, Self Close, Nickel-Plated, cup fixing: For screw fixing, Rapido mounting, model C27YA99

  Category: Pie-Cut Corner Hinge, Salice, 70° Opening Angle, Self Close, Nickel-Plated, cup fixing: For screw fixing, Rapido mounting, model C27YA99

  Item Details …

  - Area of application : For wood doors

  - Version : With automatic closing spring

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Zinc alloy, Hinge arm: Steel

  - Color/finish : nickel plated

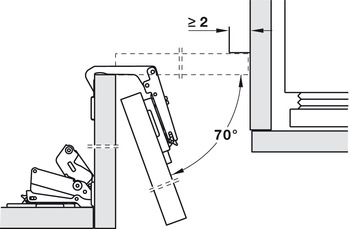

  - Opening angle : 70°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

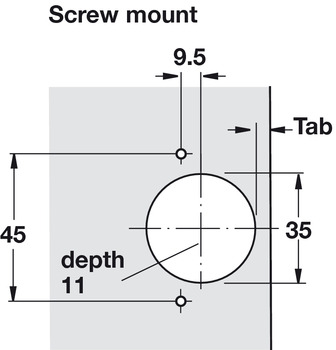

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM
