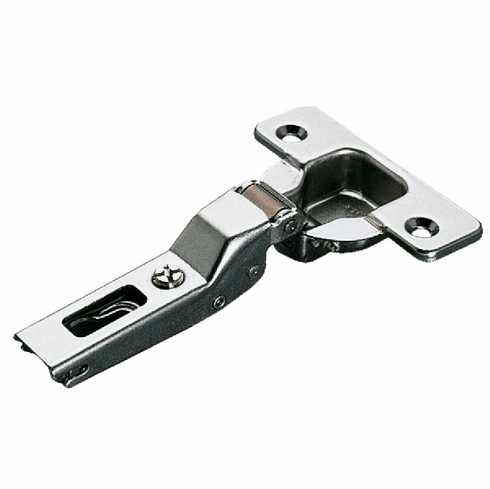

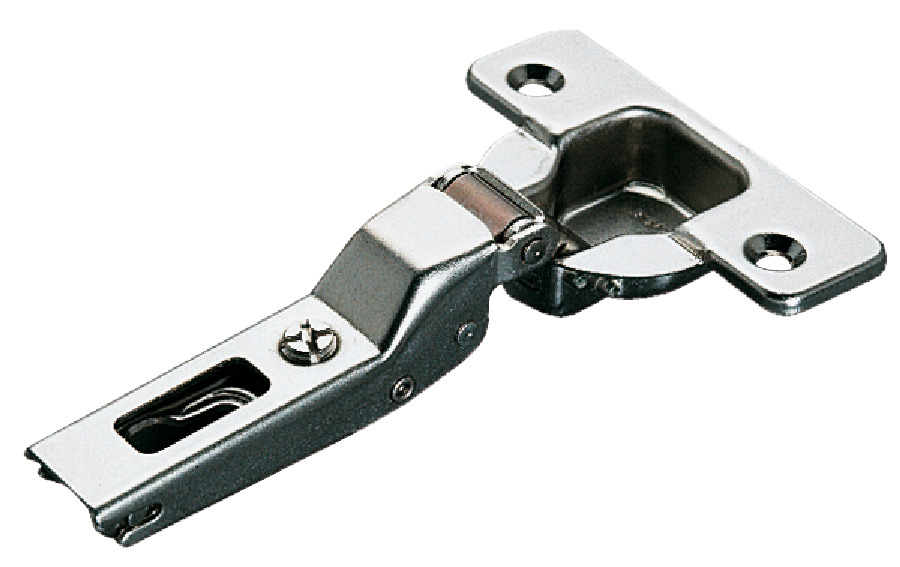

Hafele 329.17.812 Concealed Hinge, Salice PUSH, 110 degree Opening Angle, Self Opening, Half Overlay Press-fit, model C2RPG99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.17.812

  Product Title: Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Half Overlay, Press-fit, model C2RPG99

  Category: Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Half Overlay,

  Item Details …

  - Nearly complete automatic opening of the door

  - Developed to meet the market trend of handle-less furniture

  - Self-opening hinges and release devices that can easily be mounted to your furniture

  - Allows for a very “clean” design appearance

  - Reverse-spring hinges help “PUSH” the door open

  - Area of application : For handle-free opening

  - Version : With automatic opening mechanism (Push)

  - Concealed hinge version : Half overlay mounting/twin mounting

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 110°

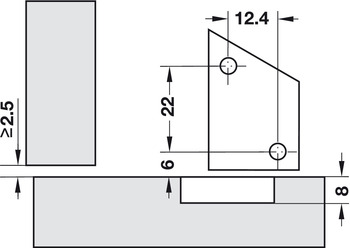

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM
