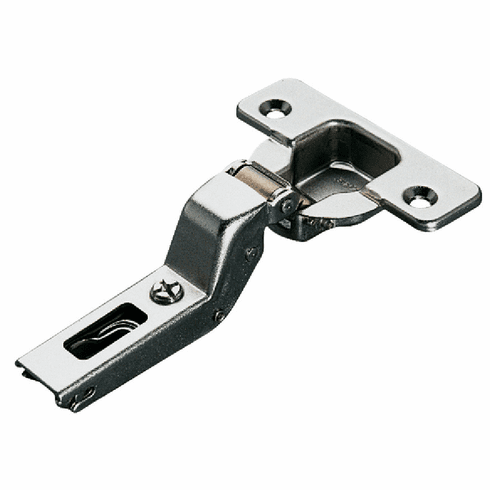

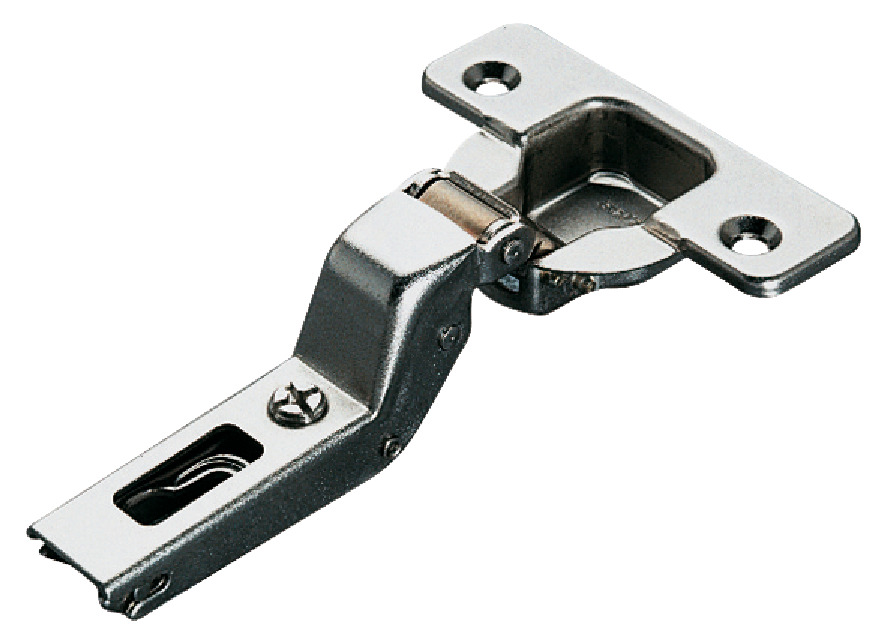

Hafele 329.17.803 Concealed Hinge, Salice PUSH 110 degree Opening Angle, Self-Opening, Inset Mounting Screw mounting, model C2PPP99

Product Information

• Description

  Hafele 329.17.803 Concealed Hinge, Salice PUSH 110° Opening Angle, Self-Opening, Inset Mounting
  Screw mounting, model C2PPP99

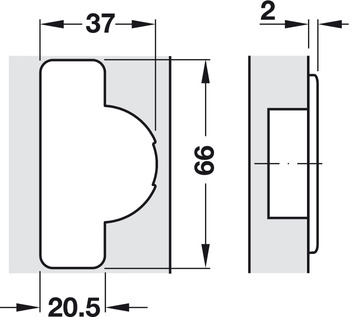

  Drilling pattern : 45/9.5 mm

  For door thickness : (5/8 - 7/8") 16 - 23 mm

  For side panel thickness : From (5/8") 16 mm

  Tab : 3 - 6 mm

  Overlay : Inset

  Type of closing : Self-opening

  Opening angle : 110 °

  Material : Steel cup and hinge arm

  Finish : nickel-plated



  Optional items:
  Door catch
  Hospa chipboard screws with countersunk head 3.5 mm
  Hinge arm cover plate
  Cup cover cap


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.30-9.33.pdf

  Hafele 329.17.803, 329-17-803, 32917803, 329.17
