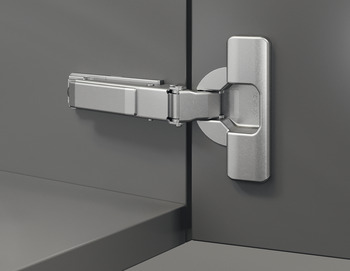

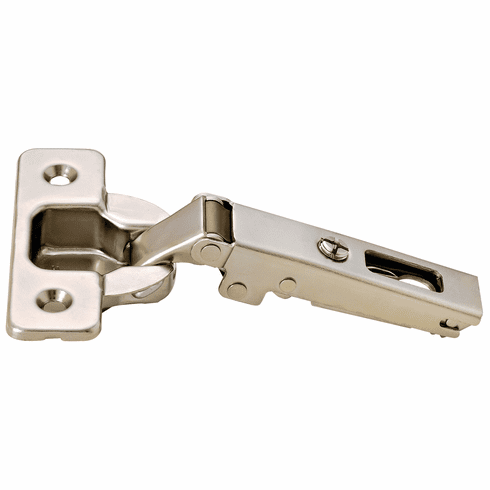

Hafele 329.17.800 Concealed Hinge, Salice PUSH, 110 degree Opening Angle, Self Opening, Full Overlay Salice, Screw mounting, model C2PPA99

Product Information

• Description

  Hafele 329.17.800 Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Full Overlay
  Salice, Screw mounting, model C2PPA99



  Opening angle : 110 °

  Overlay : Full

  Type of closing : Self-opening

  For door thickness : (5/8 - 7/8") 16 - 23 mm

  For side panel thickness : From (5/8") 16 mm

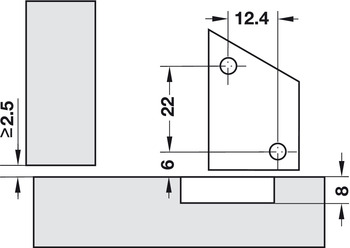

  Tab : 3 - 6 mm for 110°

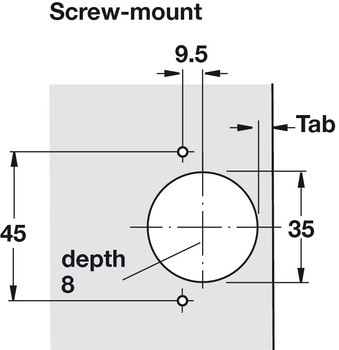

  Drilling pattern : 45/9.5

  Material : Steel

  Finish : nickel-plated



  Optional items:
  Counterplate, individual components
  Door catch
  Hinge arm cover plate
  Cup cover cap


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.30-9.33.pdf

  Hafele 329.17.800, 329-17-800, 32917800, 329.17
