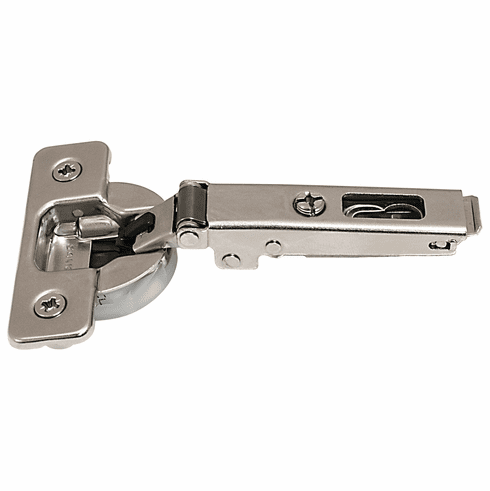

Hafele 329.17.117 Concealed Hinge, Salice 200 Series, 110 degree Opening Angle, Silentia+, Nickel Plated Full Overlay, C7R6AE9, Dowel

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.17.117

  Product Title: Concealed Hinge, Salice 700 Series, 110° Opening Angle, Silentia+, Full Overlay, C7R6AE9, Dowel, nickel-plated

  Category: Concealed Hinge, Salice 700 Series, 110° Opening Angle, Silentia+,

  Item Details …

  - Insensitive to extreme temperatures

  - Exceeds ANSI/BHMA standards A156.9 2010

  - Area of application : For wood doors

  - Material : Steel

  - Opening angle : 110°

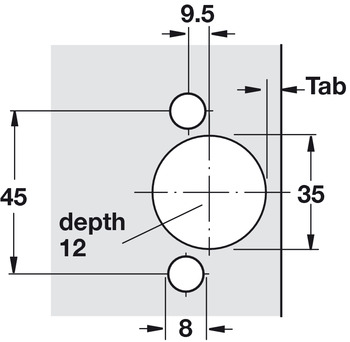

  - Drilling pattern : 45/9.5

  - Order reference

  - Mounting plates sold separately

  - Supplied with:

  - Concealed hinge


  Additional Information …

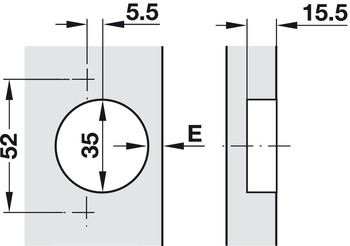

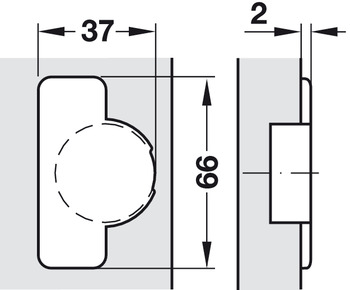

  Dimensions and gap specifications in the drawings and tables are calculated:Using factory settings With mounting plate distance 0 mm for door offset with max. opening angle

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.24
