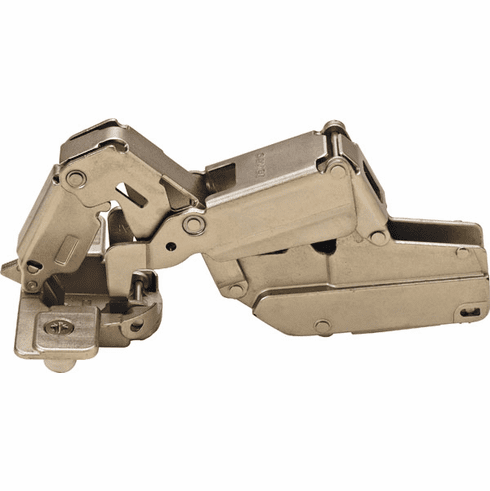

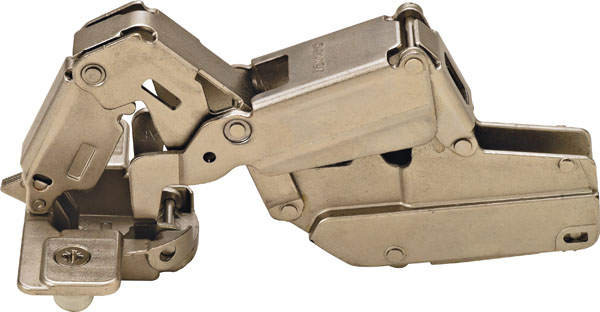

Hafele 329.07.813 Concealed Hinge, Salice PUSH, 165 degree Opening Angle, Self-Opening, Inset Overlay Dowel mounting, model C2RSP99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.07.813

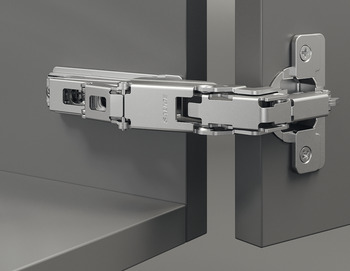

  Product Title: Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Inset Overlay, For tip-on opening, for cabinets with internal drawer boxes or pull-out shelves, Dowel mounting, model C2RSP99

  Category: Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Inset Overlay, For tip-on opening, for cabinets with internal drawer boxes or pull-out shelves

  Item Details …

  - Developed to meet the market trend of handle-less furniture

  - Self-opening hinges and release devices that can easily be mounted to your furniture

  - Allows for a very “clean” design appearance

  - Reverse-spring hinges help “PUSH” the door open

  - Concealed hinge version : full overlay

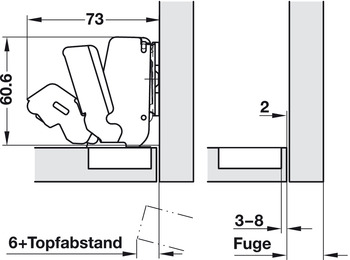

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 165°

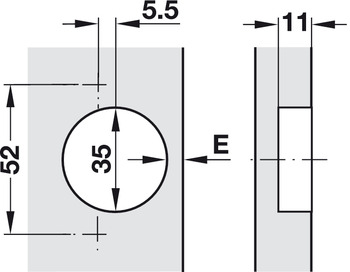

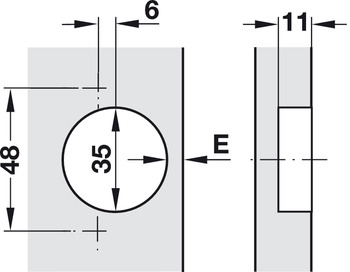

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.30-9.33.pdf

  Hafele 329.07.813, 329-07-813, 32907813, 329.07


  Specifications/Hafele Catalog - Page# FC9.37: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
