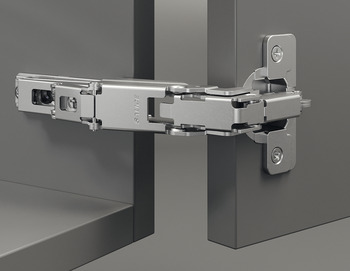

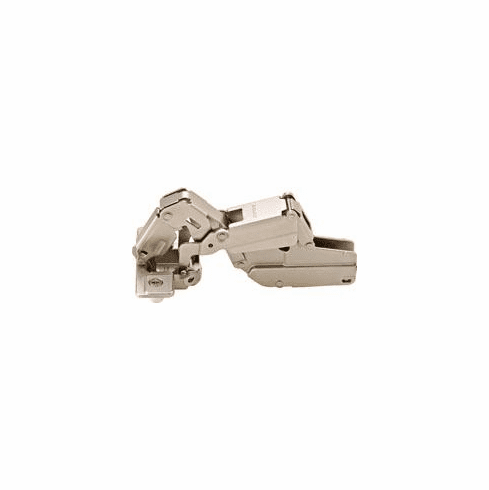

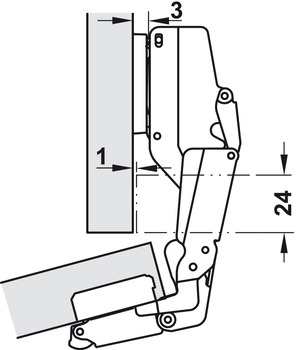

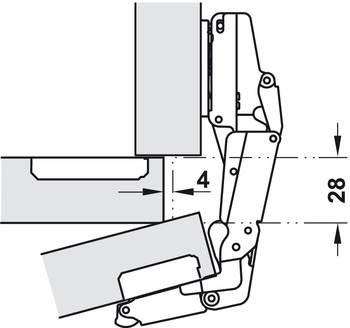

Hafele 329.07.670 Concealed Hinge, Duomatic 165 degree, inset mounting press-fit, model C2RFP99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.07.670

  Product Title: Concealed Hinge, Salice 200 Series, 165°, inset mounting, For cabinets with internal drawer boxes or pull-out shelves, press-fit, model C2RFP99

  Category: Concealed Hinge, Salice 200 Series, 165°, inset mounting, For cabinets with internal drawer boxes or pull-out shelves

  Item Details …

  - Zero offset for use with internal pull outs or extending trays

  - Area of application : For wood doors

  - Version : With automatic closing spring

  - Concealed hinge version : inset

  - Crank type : High Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Zinc alloy, Hinge arm: Steel

  - Color/finish : nickel plated

  - Opening angle : 165°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM


  Additional Information …

  Drilling pattern 45/9.5 available by request.
