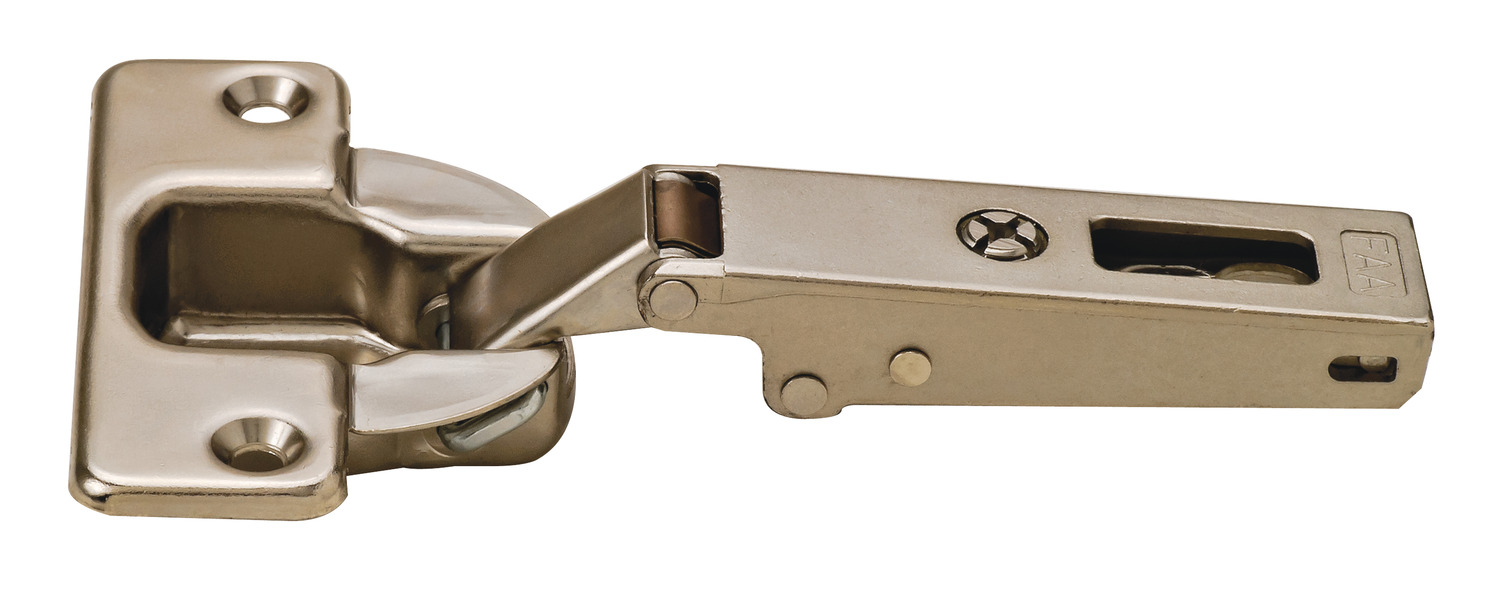

Hafele 329.05.605 Concealed Thick Door Hinge, Salice 200 Series, 94 degree Opening Angle, Full Overlay Self closing, model CFA7A99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.05.605

  Product Title: Concealed Thick Door Hinge, Salice 200 Series, 94° Opening Angle, Full Overlay, cup fixing: For screw fixing, Self closing, model CFA7A99, nickel-plated

  Category: Concealed Thick Door Hinge, Salice 200 Series, 94° Opening Angle, Full Overlay, cup fixing: For screw fixing

  Item Details …

  - Area of application : For wood doors

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 94°

  - Cup drilling depth : 13.00 mm

  - Cup drilling Ř : 40.00 mm

  - Cup fixing : for screw fixing

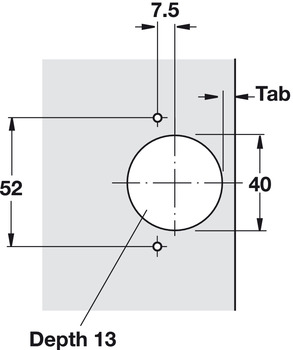

  - Drilling pattern : 52/7.5

  - Adjustment facility : Side adjustment -0.5?–?5.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM quick fixing mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM
