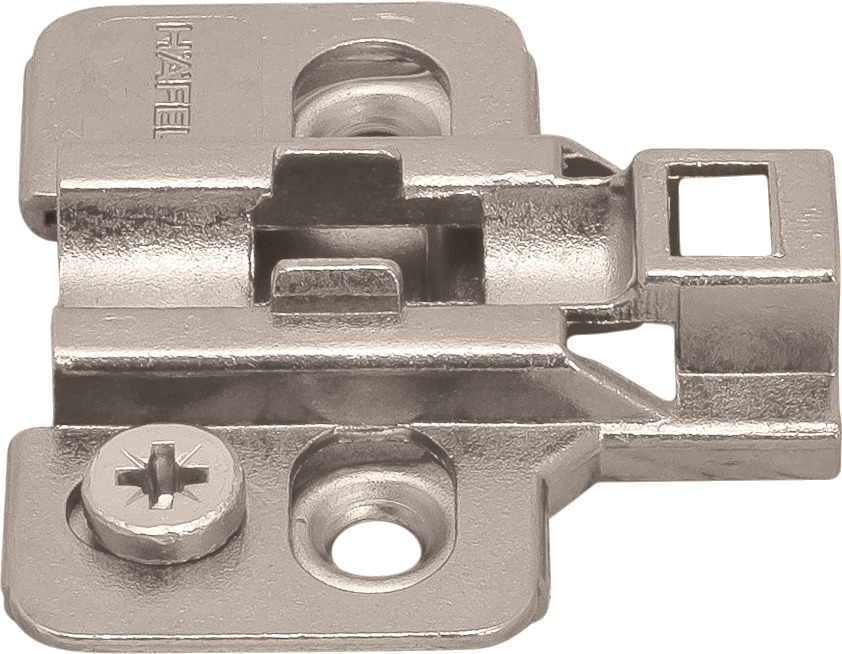

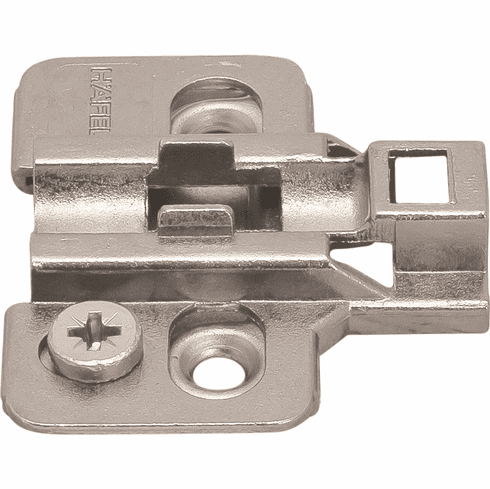

Hafele 315.98.654 Clip Mounting Plate, cam adjustable, for woodscrews, steel, nickel-plated, Mod 4

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.98.654

  Product Title: Mounting Plate, for Clip-On Hinges, Height adjustment ±2 mm via eccentric, Height: 4

  Category: Mounting Plate, for Clip-On Hinges, Height adjustment ±2 mm via eccentric

  Item Details …

  - Area of application : Accessories

  - Material : Steel

  - Color/finish : polished, nickel plated

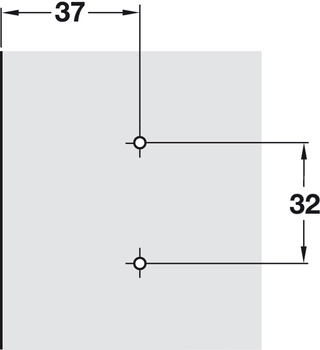

  - Screw distance : 32.00 mm

  - Fixing method : Quick fixing system SM

  - Mounting plate version : for screw fixing with chipboard screws

  - Model : SM Mini

  - Manufacturer : Häfele

  - Model series : Metalla 300

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.69
