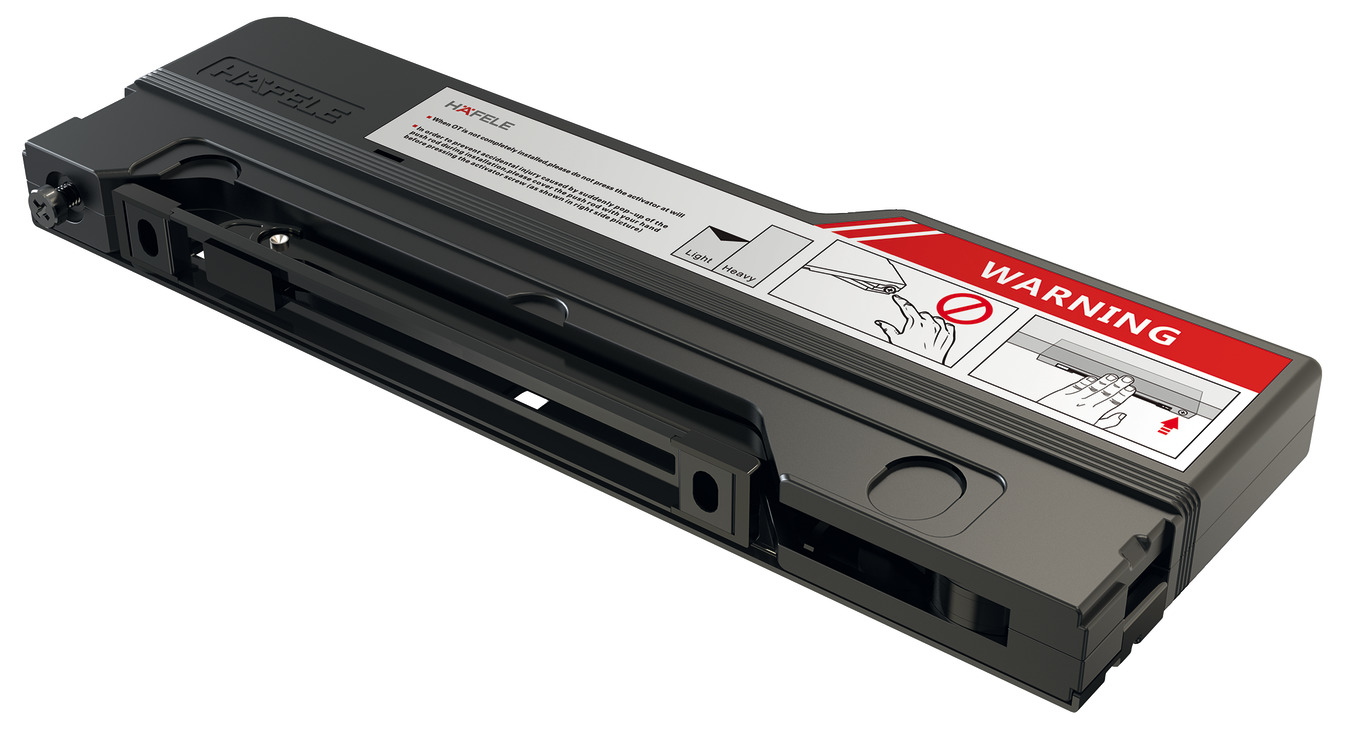

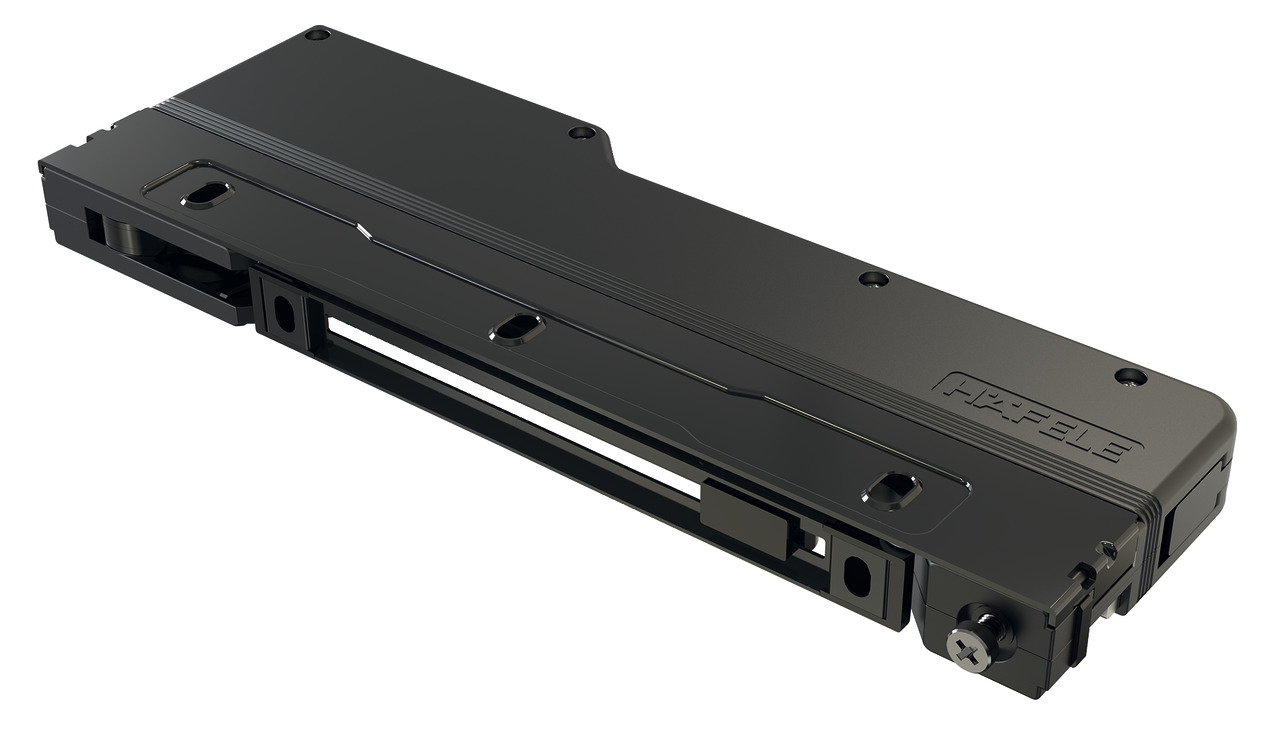

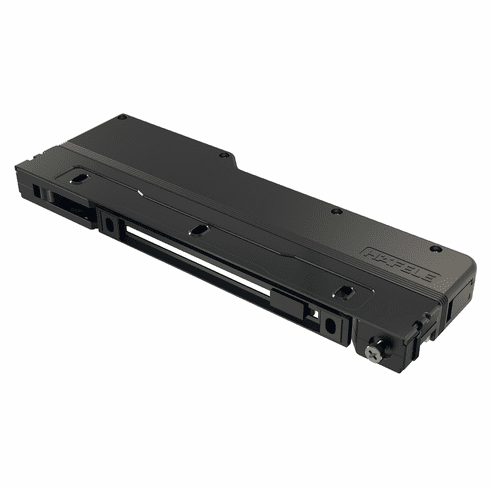

Hafele 315.11.411 Soft closing mechanism with push catch

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.11.411

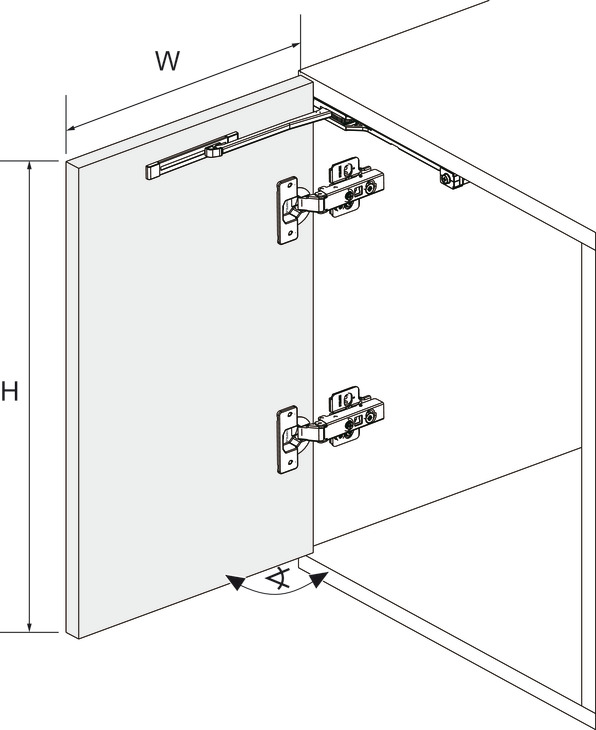

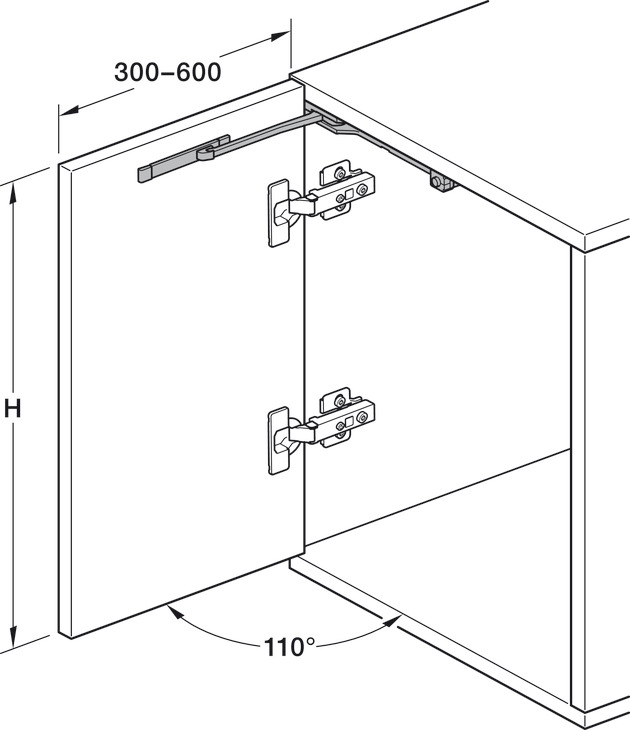

  Product Title: Soft closing mechanism with push catch, HΓ€fele One Touch, Opening angle 110Β°, for door width 300–600 mm, for door weight ≀ 25 kg, for door height ≀ 2800 mm

  Category: ,

  Item Details …

  - Area of application : for wooden doors without handles or aluminium frames,for full overlay, half overlay and inset mounting doors

  - Version : With automatic opening mechanism and integrated soft closing mechanism

  - Opening angle : 110.00 Β°

  - Dim. (L x W x H) : 202 x 68 x 18 mm

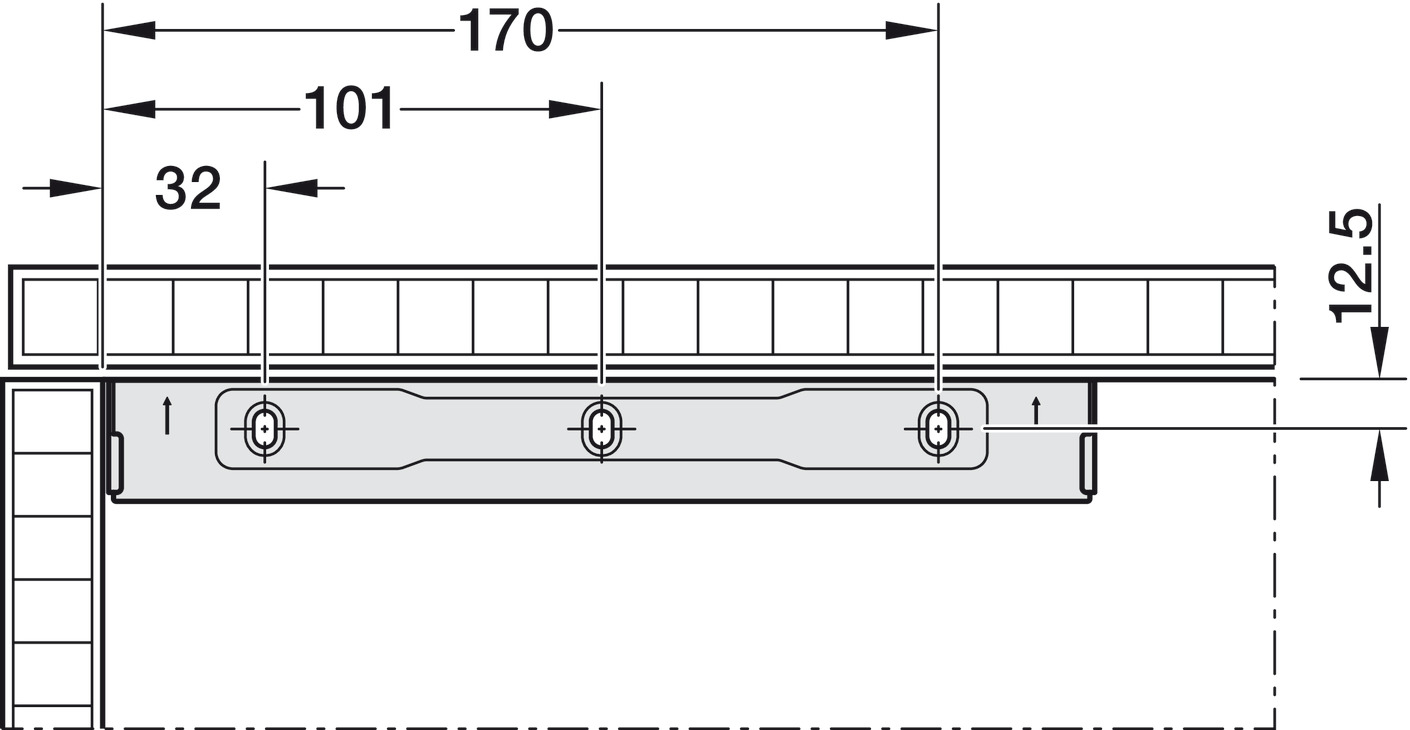

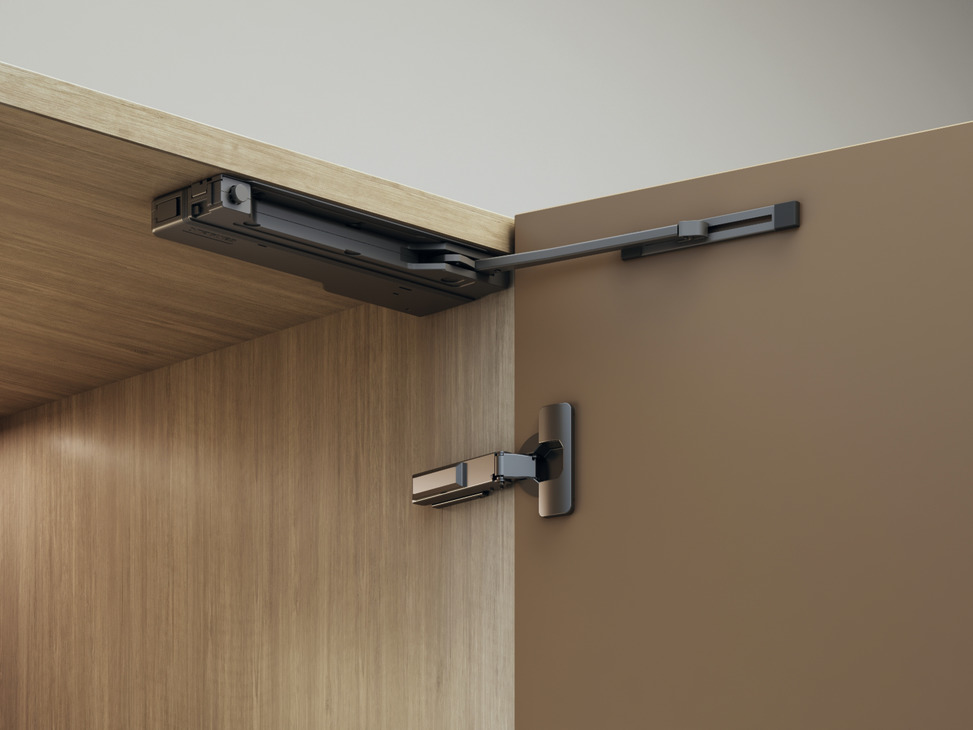

  - Soft closing mechanism installation : For screw fixing, to cabinet top panel, base panel or shelf, next to hinge side

  - Material : Housing: Plastic

  - Supplied with:

  - with fixing material


  Additional Information …

  The minimum gap must be 2-3 mm for the release device to function optimally.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions



• Brand PDF Catalogs
