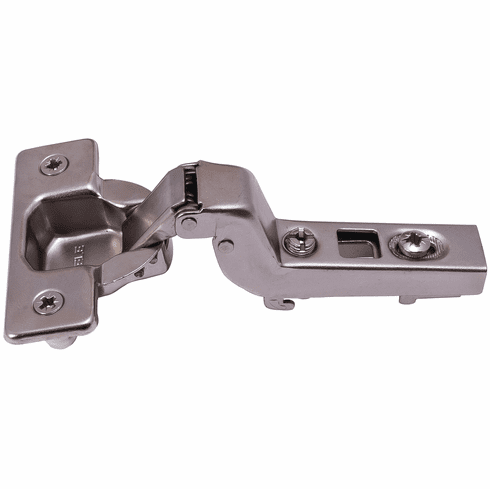

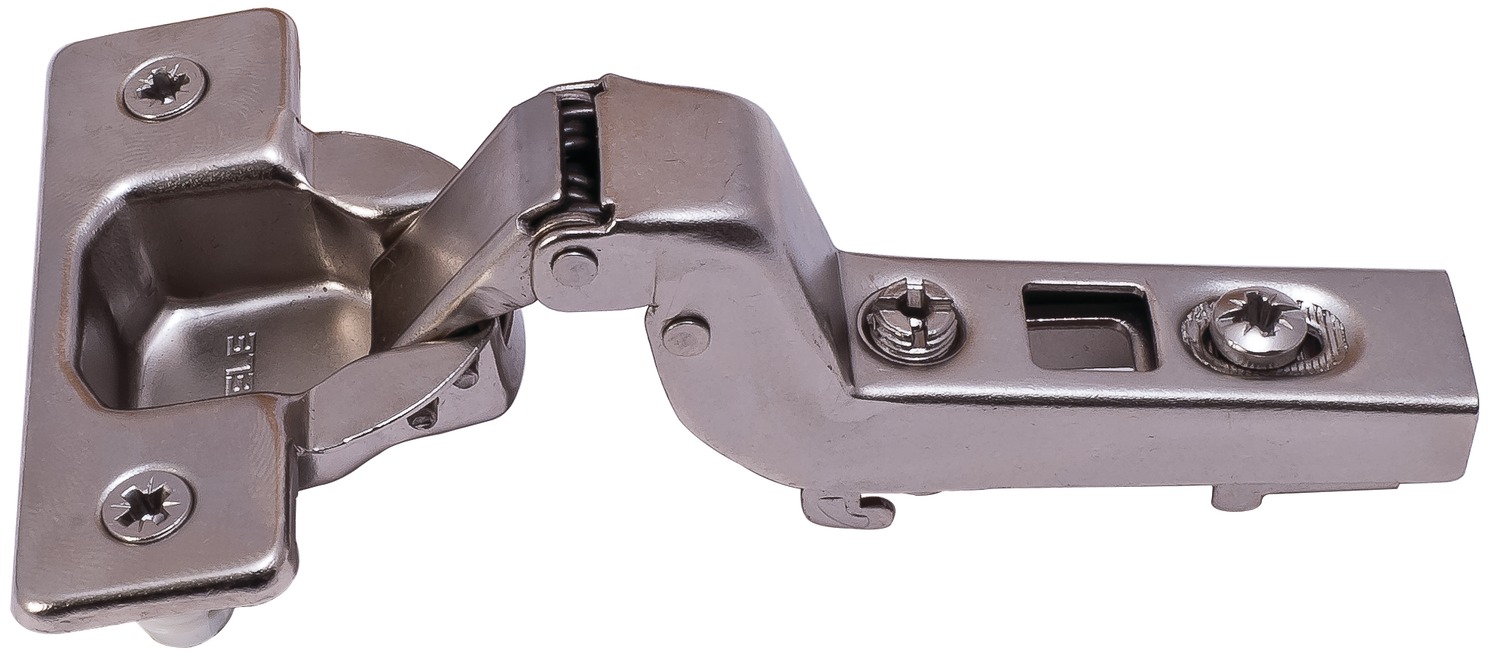

Hafele 315.03.512 Clip Hinge, Opening Angle 110 degree, Inset Overlay Self-Close

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.03.512

  Product Title: Clip Hinge, Opening Angle 110°, Inset Overlay, Self-Close

  Category: Clip Hinge, Opening Angle 110°, Inset Overlay,

  Item Details …

  - Concealed hinge version : inset

  - Crank type : High Cranked

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 110°

  - Cup drilling depth : 11.50 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5
