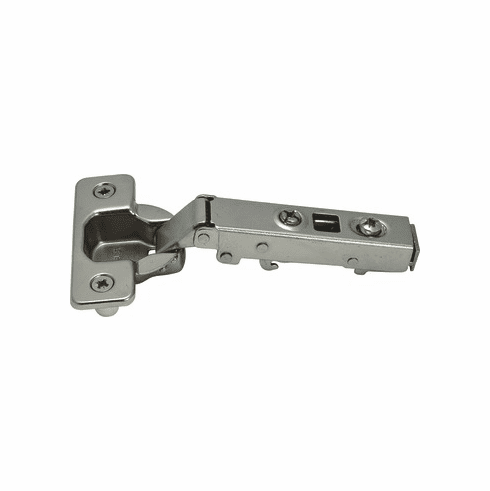

Hafele 315.00.713 Clip Hinge, Opening Angle 110 degree, Full Overlay Soft-Close

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.00.713

  Product Title: Clip Hinge, Opening Angle 110°, Full Overlay, Soft-Close

  Category: Clip Hinge, Opening Angle 110°, Full Overlay,

  Item Details …

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 110°

  - Side panel thickness : ?16 mm

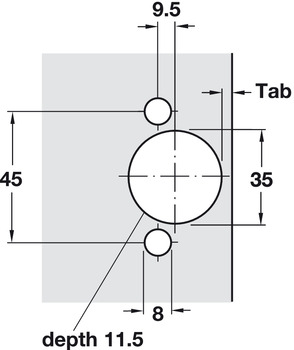

  - Cup drilling depth : 11.50 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

  - Installation : Press-fit
