Hafele 290.21.930 Concealed Cabinet Hanger, for Screw Mounting, 286 lb. Load Capacity Galvanized Steel, Unhanded

Product Information

• Description

  Manufacturer: Hafele
  Item: 290.21.930

  Product Title: Cabinet hanger, For Press Fitting; 286 lb Load Capacity, Not visible inside the cabinet, quick fixing system with lever, for screw fixing, mounting: Left or right hand

  Category: ,

  Item Details �

  - Easy fixing using integrated lever

  - Area of application : For wall unit

  - Load bearing capacity : 65.00 kg

  - Load bearing capacity per pair : 130.00 kg

  - Material : Steel

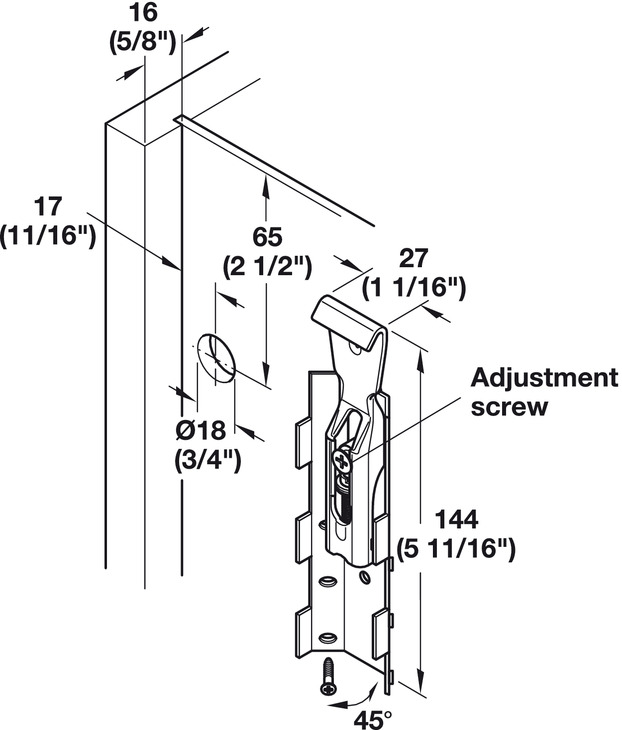

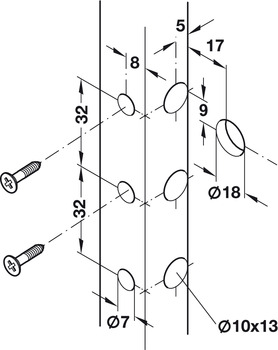

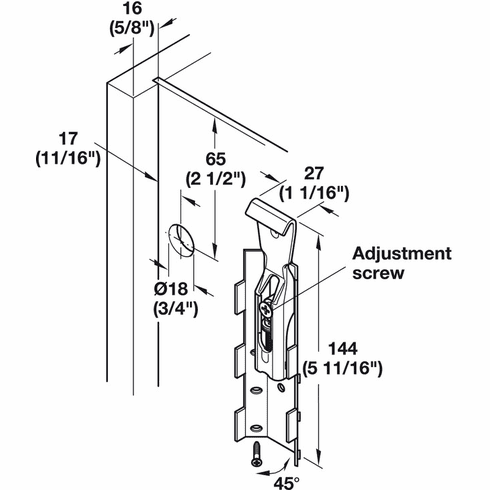

  - Installation reference : Cabinet hanger is mounted “invisibly” behind the rear panel (space requirement min. 16 mm)The cabinet hanger must be fitted in the upper third of the cabinet for safety reasons.With heavy loads: Mount at least 2 countersunk head screws (3.5 x 30 mm). Screw must rest on the dowel.Only use hand screwdriver for adjustment and screw fixing.

  - Standard : The load bearing capacity of the cabinet hanger is 65 kg/piece in compliance with the DIN EN 68840 standard requirements.

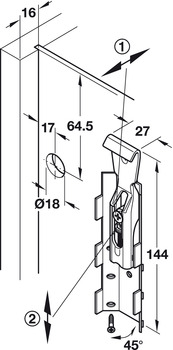

  - Adjustment facility : Adjustment screws can be accessed from the front after installation(1) Depth adjustment with 16 mm clearance(2) Height adjustment 17 mm

  - Further adjustment facility : Adjustment screws can be accessed from the front after installation(1) Depth adjustment with 16 mm clearance(2) Height adjustment 17 mm

  - Order reference

  - Please note the safety information for cabinet hangers.
