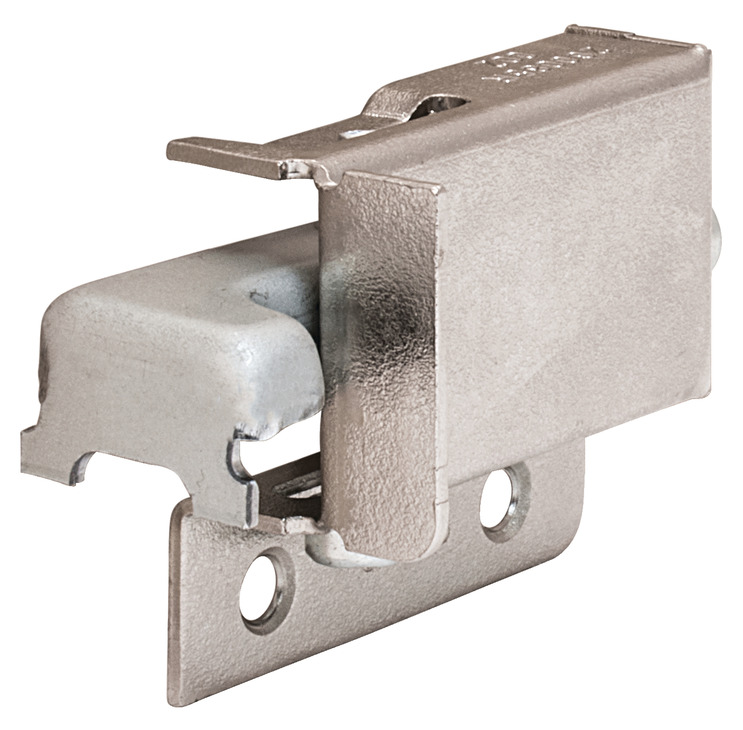

Hafele 290.02.720 Cabinet Hanger, Screw-Mounted, 440 lb. Load Capacity, 2 5/16" length Grass, Nickel plated, right hand

Product Information

• Description

  Hafele 290.02.720 Cabinet Hanger, Screw-Mounted, 440 lb. Load Capacity, 2 5/16" length
  Grass, Nickel plated, right hand



  Application : For hanging cabinets and closets

  Adjustment : Vertical: (5/8") 16 mm
  Depth: (9/16") 15 mm

  Load bearing capacity : Per pair: (440 lbs) 200 kg

  Installation : Screw mounted - #8 Flathead screws

  Material : Steel



  Optional items:
  Wall Rail, Steel, 8' Length
  Chipboard screws with countersunk head 4.0 mm
